Mix raw materials in drums faster and more perfectly. The most flexible drum mixer on the market.

This mixer takes the classic drum agitator to a new level of technology. For highest precision and most demanding mixing tasks in the drum.

The variable mixing tools mix the contents of your drums faster, more perfectly and individually adapted to your mix.

This mixer takes the classic drum agitator to a new level of technology. For highest precision and most demanding mixing tasks in the drum.

The variable mixing tools mix the contents of your drums faster, more perfectly and individually adapted to your mix.

Highlights of the MIXACO Drum Mixer
Weighing, filling, mixing, transport in one container
Mixing powders, granules, pellets, flakes and liquids
Mixing in stainless steel drum, plastic drum or individual container
Mix in barrels of 50, 100 and 200 liters
Fast cleaning for recipe changes



Ideal for food, additives, pet food, plastics and more

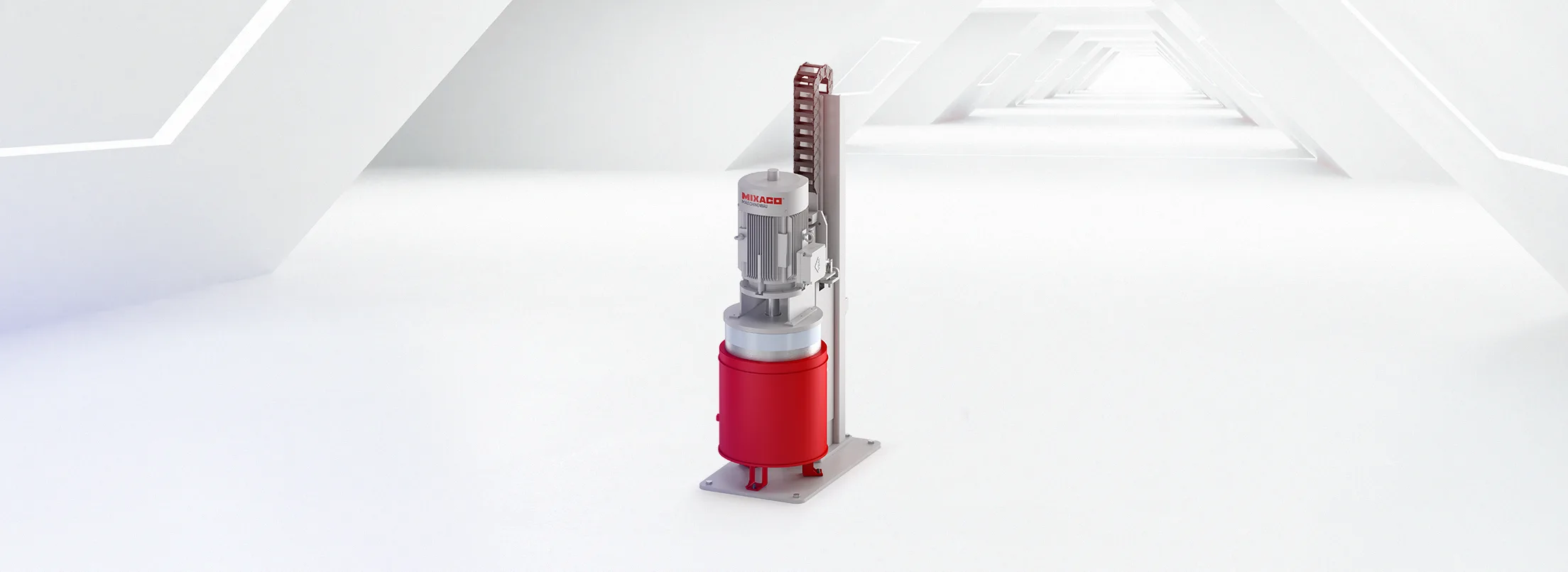

Drum Mixer Speedy™

Drum Mixer for 50 to 200 Liter barrels

Learn More

Advantages of the MIXACO Drum Mixer: Quick mixing, quick recipe change, short cleaning times.

In principle, the MIXACO drum mixer is a mixer with a drum agitator – but technologically much more advanced than classic tools.

Our drum mixer goes far beyond the function of a conventional drum mixer, which “shakes” a closed drum as a whole, rolls on a rolling belt drum mixer or rotates in a Rhönrad mixer.

It is equipped with advanced mixing tools that can homogenize the most diverse and even complex mixtures. The drums are mixed under air exclusion, moreover, air or dust can also be extracted from the drum during mixing.

The Speedy™ drum mixer is an innovative further development of traditional drum mixers. It is designed for the production of powdered products in particular – from chemical and pharmaceutical raw materials to color pigments, plastics, foodstuffs or other dry mixtures.

The drum mixer is based on the concept of mixing small batches directly in the drum. During the entire work process from weighing, filling and mixing to transport, emptying and storage, the mix remains in the same container. This eliminates the need for time-consuming and costly cleaning.

Our drum mixer blends a wide variety of raw materials into a homogeneous mixture of the highest quality in a very short time:

  • Mixing in stainless steel drums, PE drums or individual containers
  • Feeding via trolley, drum pick-up, hand pallet truck or fully automatic roller conveyor
  • Safety enclosure optional
  • Protection by light grid, light curtain, laser scanner or door control possible
  • Integration of upstream and downstream processes via lifting, tilting, swiveling, depositing, docking, etc.
  • Stainless steel design GMP-compliant
  • Individual container clamping systems possible – manual to fully automatic
  • Easy change of drums – no decanting necessary
  • Very compact and space-saving
  • Small product quantities can be mixed quickly – usually within 3-6 minutes
  • Tool-free, foolproof, safe and automatic operation
  • Low-maintenance, reliable and durable machine technology “Made in Germany”

  • Atex version for different zones
  • Different mixing tools that can be changed quickly
  • Mixing without dead spaces
  • Extensive accessories
  • Powerful mixing drive for many different applications
  • Can be used for a wide variety of mixing tasks with many tool and motor combinations
  • Low cleaning time of the tool
  • Low energy consumption
  • Mixing parameters individually adjustable
  • Cost-effective test mixing & mixing optimization in our test center
  • Cost-effective individual maintenance & remote maintenance
  • Also advantageous: combined mixer for bags and drums (Speedy™ S/D)
Spindle Lift Drive

The mixing head can be lowered and raised safely with the spindle lift drive.

Centering Pins

For the stable and perfectly centered position of the drums under the mixing head of the drum mixer.

Foam Rubber Plate

The drum holder of the drum mixer is equipped with a non-slip rubber floor.

Dirt Collection Pan

The swiveling dirt collection pan on the drum mixer makes cleaning easier.

Threaded Coupling

With the threaded coupling, dirty mixing tools can be changed quickly.

Dedusting

The suction unit on the drum mixer is used for low-dust further processing after mixing.

Addition Funnel

Solid or liquid ingredients can be added to the drum via the port during mixing.

Stainless Steel Mixing Head

The mixing head is available as a pure stainless steel version for even easier cleaning of the drum mixer.

Temperature Sensor

The temperature of the product in the drum can be read via the sensor.

Mixer Quotation Configurator: Just 2 minutes to the perfect mixer for your raw materials.

Simply tell us your requirements and we will recommend you the optimum mixer for your raw materials and applications. Use our configurator.

With your details on quantities, mixtures, temperatures, additional ­functions and other information, we will prepare a customized quotation for you.

One drum mixer for countless raw materials and industries. Next Generation Drum Mixer.

Our Speedy™ drum mixer opens up versatile applications for the manufacture of numerous products thanks to the variable mixing tools, mixing techniques and containers.

The drum mixer is suitable for many raw materials, particle sizes and consistencies – from powders, fine powders, grains, granules, flakes and pellets to liquids, for example:

  • Food
  • Pet food
  • Powder coating
  • Powder coating premixes
  • Toner
  • Masterbatch
  • Additives
  • Pigments
  • Plastics PE, PP, PA, PVC, PS, ABS, TPE, EPS etc.
  • Dry mortar, cement, plaster
  • Bulk materials of all kinds
  • And much more

Our drum mixer is used for products in almost all industries:

  • Food industry / food
  • Chemical industry / chemistry
  • Pharmaceutical industry / pharmaceuticals
  • Feed industry / pet food
  • Plastics industry / PVC
  • Masterbatch
  • Paints, lacquers, powder coatings
  • etc.

Mixing Procedure. Drum Mixer for a Wide Range of Mixing Applications.

The MIXACO drum mixer can be ideally integrated into upstream or downstream processes. In addition to drums, individual containers can also be used for mixing by means of adapted clamping or pick-up systems. The drums can be mixed with a filling degree between 14 % and 80 %.

With the MIXACO drum mixer, various mixing processes of homogenization and dispersion are possible. The precise tuning of the technology as well as the control parameters are created by our specialists together with you in a free mixing test.

Mix in 50, 100 or 200 liter stainless steel drums. Besides powders, granules, flakes and pellets, liquids can also be mixed.

Depending on the mixing task, the corresponding die is lowered into the container with the raw materials. Homogenization is particularly gentle. You flexibly specify whether or not temperature has to be added to the mixtures during the mixing process. Afterwards, the barrel can immediately be taken to the next processing station.

The mixing containers are fixed in a solid receptacle below the mixing head.

In terms of applications, our drum mixer goes far beyond the capabilities of a simple agitator and can also perfectly handle demanding mixing tasks:

  • Mixing
  • Rearrangement
  • Processing
  • Coloring
  • Homogenization of all bulk materials
  • Agglomeration
  • Deagglomeration
  • Shortening of mixing times
  • Gentle homogenization
  • Improvement of product quality
  • Powder coating
  • Distribution of solids in liquids
  • Polishing of metal or plastic parts
  • etc.

Individual Add-on Options. Perfectly matched to the processing of your raw materials.

The drum mixer can be expanded in many ways. Additional adaptations can be developed in cooperation with our engineers according to your individual requirements. Additional functions of the drum mixer can be:

  • Dust extraction / suction
  • Temperature sensor with temperature display on the touch panel
  • Dirt collection tray
  • Injection / Draw-off nozzle
  • ATEX versions
  • Data recording and evaluation
  • Remote maintenance & remote troubleshooting (instead of on-site repair)
  • Various stainless steel designs of product-contacting parts
  • Protective fence for the entire mixer
  • Mixing in individual containers
  • Batch mixing under vacuum, coating and drying
  • Batch mixers with individual mixing tool geometries
  • Wear-resistant designs against abrasion, corrosion and adhesion
  • Dust-resistant machine components
  • Individual sealing variants
  • Hydraulic lids and discharge flaps
  • And much more

As the inventor of the container mixer, we at MIXACO are committed to innovation in industrial mixing technology.

FAQ. Drum Mixer Knowledge.

What is a drum mixer?

The classic drum mixer, also called a tumbling mixer, works on the principle that a drum is moved or “shaken” as a whole and in a closed state. This could be described as a “tumbling” motion, hence the term “tumbling mixer” for this type of mixer. In contrast, there are drum mixers with an agitator that are inserted into the open drum.

A conventional drum mixer, which moves the drum as a whole container, can be designed in different ways. Often, the simple drum mixers have a kind of gripper arm or drum holder to which the drum is attached and then moved accordingly. In addition, there is the drum mixer type “drum roller mixer”, in which the drums are continuously moved on a roller conveyor.

There are also the so-called “Rhönrad mixers“, which also belong to the wobble mixers, where the barrel is clamped in a Rhönrad construction and is moved or rotated by a circular motion in the Rhönrad.

All these mixers are classic drum mixers, which set a drum in motion as a whole and in a closed state, causing mixing of the material inside.

The disadvantage with these drum mixers is that in principle the “cat in the bag” is shaken and no information about the condition of the raw materials inside is obtained during mixing. For example, it is not possible to measure the temperature, take samples or inspect the mixing movement.

Another major disadvantage is the very limited mixing procedures, as the mixing technique is limited to more or less shaking, rolling or rotating the drums without active mixing tools.

Our Speedy drum mixer is not a classic drum mixer or tumbling mixer in this sense. It uses active mixing tools that are lowered into the drum. So it would most likely fall into the category of barrel mixer, but likewise you could compare hand mixer to food processor. Because of its capabilities, our drum mixer is neither a tumbling mixer nor a drum agitator – it forms its own class of drum mixer.

Our Speedy drum mixer goes beyond the usual definition of drum mixers and, with its superior features and flexible options, opens up new possibilities for mixing smaller quantities of a wide variety of raw materials with high precision and versatility.

Even container mixers could also be called drum mixers in the broadest sense, but this is purely a matter of definition.

What is a tumbling mixer?

Tumbling mixers are mixers that mix the material inside a container by moving the entire, closed container. A tumbling mixer can be so large that it mixes 200 liter drums as a whole, or it can be used as a tabletop device in the laboratory to mix the inside of very small containers by swiveling, shaking or rotating.

The “tumbling”, i.e. the movement of the container, can be achieved by different techniques of the tumbling mixer. The wobbling is probably most evident in the so-called Rhön wheel mixer, in which a container is made to rotate in a wobbling manner.

In addition, roller conveyors can set a container less in a tumbling motion, but in a rolling motion. These roller mixers are also tumbling mixers.

Very often, the third type of tumble mixer, in which a container is gripped and “shaken” as if by a gripper arm, is used for mixing 200-liter drums. Therefore, the term tumble mixer and drum mixer is often used as synonymous, and a Google search for a tumble mixer directly brings up the typical images of drum mixers.

Thereby, the tumbler mixer as a drum mixer can have further different designs, for example, with regard to the type of drum pick-up. There are also drum tumbler mixers that are able to grip, lift and move or shake the drums directly from the floor by means of a tilting movement of the entire mixer.

But tumble mixers are not only available for 200 liter drums, but also for very small containers. For more precise and varied mixing of drum contents, our new Speedy drum mixer offers significantly more options than the classic tumbling mixer. We also refer to our double cone mixer as a tumbling mixer.

What is a barrel agitator?

The drum agitator is also a drum mixer, but it works on a completely different principle than the tumbling mixer.

When mixing with an agitator, the barrel is opened and an agitator is lowered to mix the contents. These agitators can have quite different designs. There are manual drum agitators that are held in a drum by hand – similar to the stirring rod that can be inserted into a drill. Or the agitator is attached to a tripod and lowered into the barrel.

There are also slightly more automated mixers that simplify and speed up the mixing process.

For drum agitators, there are various mixing tools as attachments, for example, spiral, propeller, shafts and others.

In principle, mixing with a drum agitator is rather a rudimentary mixing technique for coarse mixing and for such applications where the mixing process and result do not have to be 100% precise.

For the precise and perfect mixing of even sensitive raw materials, a mixer like the Speedy, equipped with an “agitator 4.0” so to speak, offers far more possibilities for mixing smaller quantities of raw materials in drums or other containers.

Service & Support for our Drum Mixers. You can rely on us and our experienced technicians.

We install the drum mixer at your site, commission it and integrate it into your production process.
We rely on individual maintenance that is tailored to your drum mixer. This is more efficient and cost-effective for you than long-term standard maintenance ­ contracts.
In case of malfunctions, we are available for you 24/7.
Fast remote maintenance by our technical professionals directly at your machine.
We deliver spare parts at short notice and are promptly on site with technicians.
