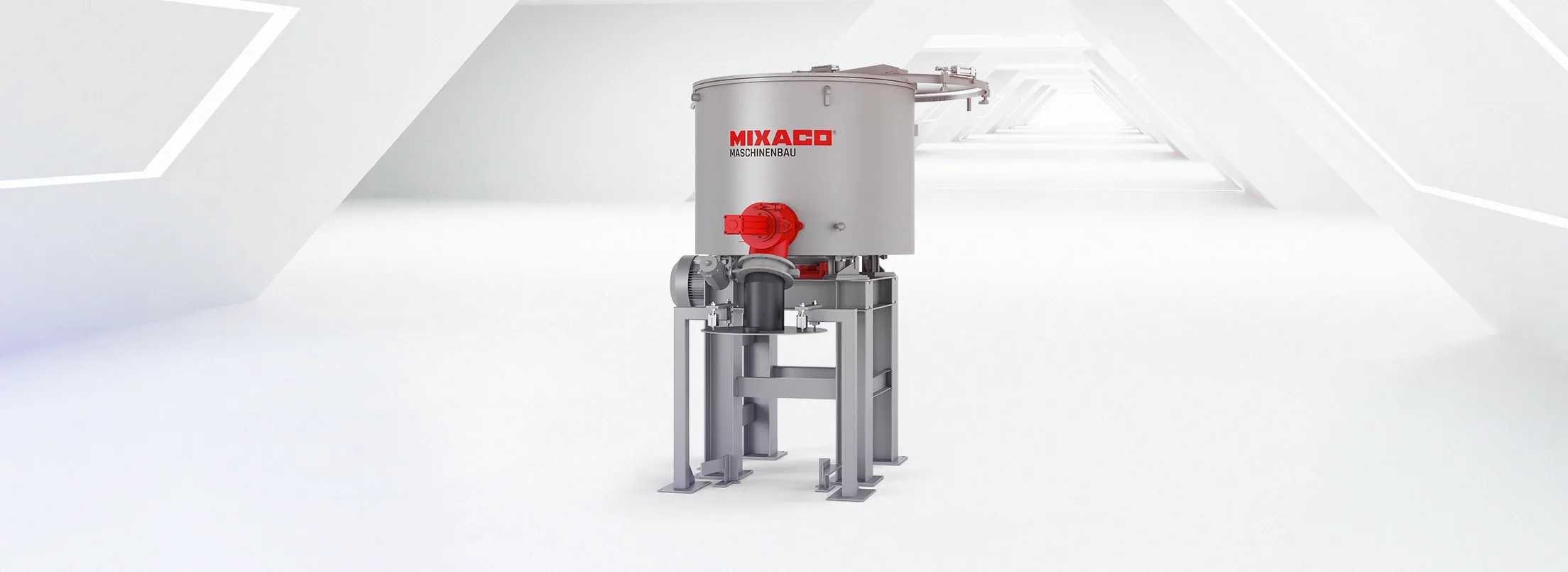

MIXACO Universal Mixer vertical

The flexible stationary mixer. Perfect adaptation to mixing tasks and structural conditions.

Especially due to its high flexibility in its execution, the universal mixer can be ideally adapted to the required mixing task and structural conditions.

Sizes with a total volume of 5 to 6,000 liters are available.

Especially due to its high flexibility in its execution, the universal mixer can be ideally adapted to the required mixing task and structural conditions. Sizes with a total volume of 5 to 6,000 liters are available.

Advantages of the MIXACO Universal Mixer
Sophisticated and modular mixing system
Customizable mixer solution
Tailored mixing tools for optimum mixing
Shaped discharge for complete emptying
User-oriented mixer control system
Well engineered and lasting machine technology
Discover the Universal Mixer of MIXACO in Action.Watch Video

Advantages at a Glance. Mixing With Maximum Flexibility.

The MIXACO universal mixer delivers top performance for a wide range of applications. Whether for slow and gentle homogenization or more intensive mixing: consistently high quality is always guaranteed for every process.

Especially due to its high flexibility in execution, the universal mixer can be ideally adapted to your mixing task and structural conditions.

  • Standard sizes from 5 to 6,000 liters volume
  • Can be used for a wide range of applications such as homogenizing, dispersing, coating
  • Individual mold combinations
  • Conturadapted outlet ensures low-residue emptying of the mixer
  • Short cleaning & service times due to hinged / swiveling mixer lid
  • ATEX execution possible
  • Special surfaces for foodstuffs
  • Dead space free and swiveling outlet
  • No product ­contamination due to closed mixing chamber
  • Gentle mixing of sensitive, temperature-sensitive and fragile raw materials
  • Many additional functions
  • Simple mixer ­control with interface to cloud monitoring “MIXACO Control Center”
  • Mature and durable machine technology ensures an economical investment

Operating Principle. Homogeneous Mixtures.

The MIXACO universal mixer is an individually configurable mixer solution for versatile mixing tasks. High shear forces ensure extremely fast homogenization.

The possibility of both controlled heating and cooling of the mix (combination with a cooling mixer) makes this mixer one of the most flexible high-speed mixers on the market.

MIXACO Control Center (MCC). 360° Cloud Monitoring for MIXACO Mixers

In the web-based MIXACO Control Center (MCC), so-called “digital twins” of your machines are created, via which you can permanently evaluate all mixer parameters in real time.

By continuously monitoring the condition of your mixers, you can benefit from maximum process quality and machine availability. The connection to the MCC is optional and possible without additional sensors on the mixer, the parameters are recorded via the existing PLC control.

Learn more about MIXACO Control Center

Innovative Browser Interface
360° Cloud Monitoring for MIXACO Mixers
Intuitive Live Control
Process Information in Real Time

MIXACO Control Center (MCC). 360° Cloud Monitoring for MIXACO Mixers

In the web-based MIXACO Control Center (MCC), so-called “digital twins” of your machines are created, via which you can permanently evaluate all mixer parameters in real time.

By continuously monitoring the condition of your mixers, you can benefit from maximum process quality and machine availability. The connection to the MCC is optional and possible without additional sensors on the mixer, the parameters are recorded via the existing PLC control.

Innovative Browser Interface
360° Cloud Monitoring for MIXACO Mixers
Intuitive Live Control
Process Informationen in Real Time

Mixer Control System. Safe, Efficient and Economical.

The control of the universal mixer is based on a Siemens S7 PLC and meets today’s requirements for safety, efficiency and economy. The development and programming of the control system from a single source ensures optimum integration of the mixer components. Alternatively, it is also possible to use Allen-Bradley components (incl. Panelview operating unit).

The control can also be executed according to UL / NEMA. In addition, the control can be equipped with an interface for data exchange to a higher-level control.

Siemens TP700

Up to 99 mixing programs with ten work steps each can be created in tabular form via the TP700 touch control panel. Data acquisition and storage of the measured values takes place.

Allen Bradley

Control to UL / NEMA standards with an Allen Bradley PLC and Panelview control panel is also possible.

Mixing Techniques. Multipurpose mixing of numerous raw materials.

The MIXACO Universal Mixer Vertical is an extremely flexible mixer for numerous mixing tasks.

  • Homogenize
  • Dispersing
  • Wetting
  • Preparation
  • Agglomeration
  • Deagglomeration
  • Coating
  • Disintegration
  • Preparation and dyeing of fibers
  • Blending
  • Drying / Vacuum drying
  • Absorbing
  • Homogenization of many different bulk materials
  • And much more

Industrial Mixers for all Industries.

The MIXACO Universal Mixer vertical with its many sizes is the optimal mixer for products from all industries, e.g. TPE, ABS, additives, compounds, EPS, POM, PS/PP, PTFE, powder coating, food, powder rubber and many more.

Mixing Tools. Built Modular for More Flexibility.

With the universal vertical mixer, completely individual tool and motor combinations can be perfectly adapted to your mixing application.

Advantages of the tool system

  • Individually and modularly configurable
  • Easy to clean
  • Quickly exchangeable

Additional Options. For tailor-made Mixers.

  • Weigh Cells
  • Injection of liquids (e.g. plasticizers)
  • External tank temperature control
  • Hydraulic mold stroke

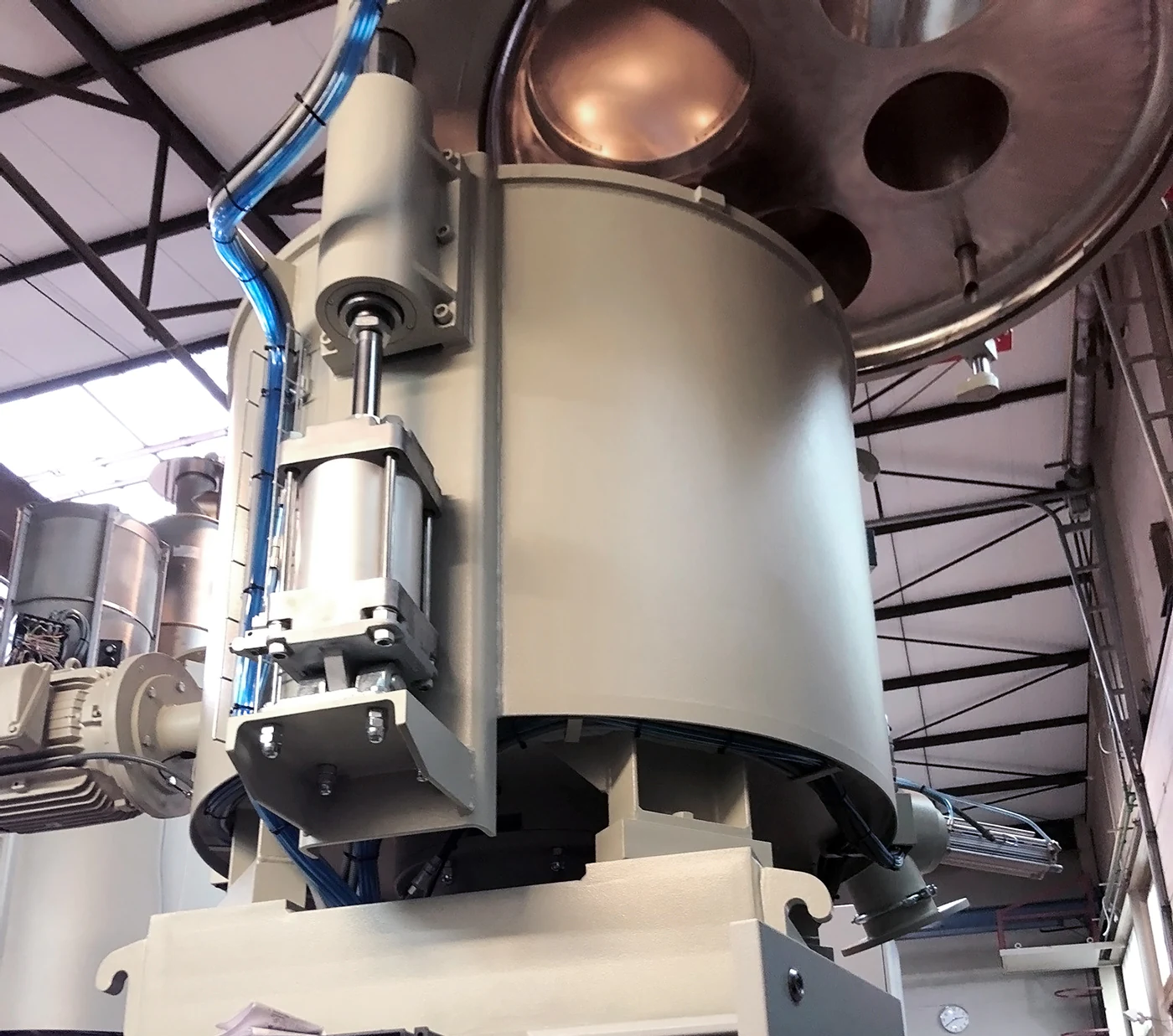

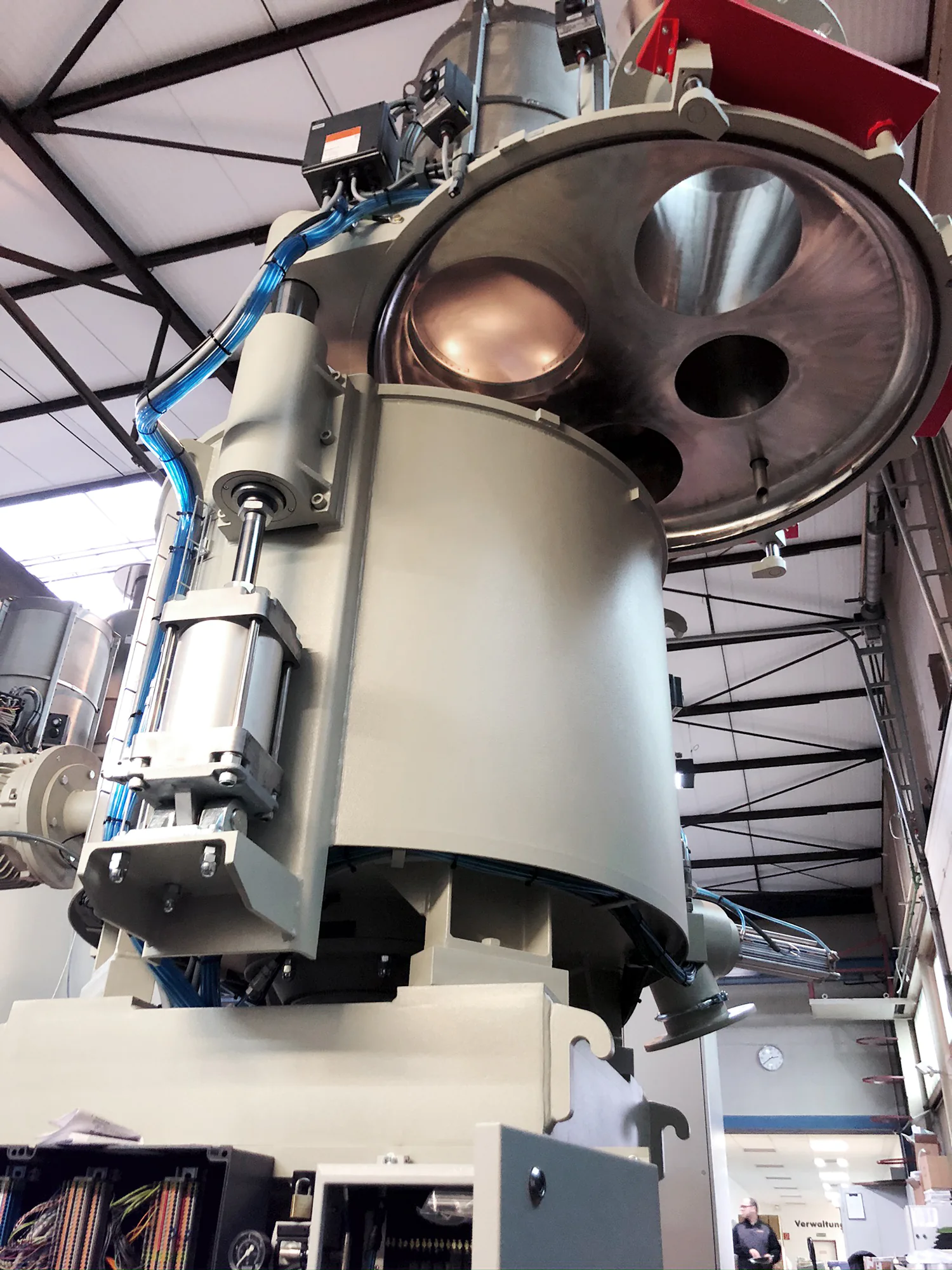

  • Swiveling lifting cover for better cleaning
  • ATEX execution (nitrogen inerting or oxygen concentration measurement)
  • Explosion suppression systems
  • Data recording and evaluation

Weighing Scales

Vessel Tempering

Oxygen Concentration Measurement

Second Discharge

Jet-Filter

Temperature Sensor

Chopper

Explosion Suppression Systems

Injection

Nitrogen Inertization

Wear Coating

Discharging into a Container

Sizes of the Universal Mixer Vertical. We are happy to advise you.

Mixer SizesUseful Volume LiterPower kW*
20165.5
40327
806415
20016018
30024022
45036030
65052037
85068045
100080055
1500120075
20001600110
30002400132
50004000160
60004800160

*The performance depends on the use and may vary

Technical Data

Circumferential speed: 10-15 m/s

Vessel double jacket for insulation / temperature control

Modularly designed tooling system

Other sizes on request

Brochure "Universal Mixer & High Intensity Mixer"     english (PDF)

As the inventor of the container mixer, we at MIXACO are committed to innovation in the industrial mixing technology.

Service & Support. Rely on our experienced technicians.

We install the container[]mixer at your site, commission it and integrate it into your production process.
We focus on individual maintenance that is tailored to your mixer. This is more efficient and cost-effective for you than long-term standard maintenance contracts.
In case of problems with your mixer, our experienced technicians are available around the clock – 365 days a year.
Remote monitoring and remote software updates mean that hardly any on-site maintenance is required.
We put together sensible wear and spare parts packages for your mixer. We deliver further spare parts as quickly as possible.

Mixer Quotation Configurator: Just 2 minutes to the perfect mixer for your raw materials.

Simply tell us your requirements and we will recommend you the optimum mixer for your raw materials and applications. Use our configurator.

With your details on quantities, mixtures, temperatures, additional ­functions and other information, we will prepare a customized quotation for you.

MIXACO Downloads. Further Information About Our Industrial Mixers.

Brochure "Universal Mixer & High Intensity Mixer"     english (PDF)

Brochure "MIXACO Control Center"     english (PDF)
