MIXACO Container Mixer CM i4 fleX

The new Industry 4.0 container mixer CM i4 fleX. One mixer for different container sizes. Ideally suited for frequent recipe changes due to reduced cleaning times.

The innovations of container mixer CM i4 fleX combine with the advantages of container mixer CM i4 to present an advanced industrial mixer with longer life cycles and lower maintenance requirements.

The container mixer CM i4 fleX is equipped with a new and innovative tool and container detection system that enables safe and automated operation of the mixer. This allows for greater flexibility and usability of the mixer.

The innovations of container mixer CM i4 fleX combine with the advantages of container mixer CM i4 to present an advanced industrial mixer with longer life cycles and lower maintenance requirements. The container mixer CM i4 fleX is equipped with a new and innovative tool and container detection system that enables safe and automated operation of the mixer. This allows for greater flexibility and usability of the mixer.

Benefits of the container mixer CM i4 fleX
One container mixer for different container sizes
Automatic tool and container detection for a safe operation of the mixer
Large throughput range in only one mixer
Maximum flexibility & optimal homogenization without adhesion
Excellent mixing quality with short mixing times & minimal heating
Different container sizes of one CM i4 fleX can be used in one discharge station

Benefits at a glance. The flexible container mixer CM i4 fleX.

Different container sizes for one mixer

One container mixer CM i4 fleX can be used with up to three different container sizes.

The specialized design of the containers is adapted to the mixing head of the respective container mixer, thus enabling a larger throughput range per mixer. This makes the production process even more flexible.

Automated tool and container detection

The innovative tool and container detection enables a safe and automated execution of the mixing process.

Innovative mixing head

The innovative, ultra-flat mixing head reduces cleaning.

The flat mixing head has a smaller surface compared to a conventional mixing head and can therefore be cleaned more quickly and easily. The large distance between the mixing tool and the mixing head enables cleaning in the installed state. This makes extremely fast cleaning cycles and recipe changes possible. The new tool design ensures optimal mixing stream formation (vortex) with moderate temperature input.

No bottom plate for easier hygiene

By saving the bottom plate, additional cleaning effort is reduced.

Dust-proof machine components

The dustprotected installation of many machine components in the right-hand side of the stand also reduces cleaning requirements.

Optimized suction

Optimized extraction by means of a special dedusting device on the mixing head, which sucks off the fine dust produced in the mixing vessel after the mixing process.

Explosion-proof version ATEX/NEC

The container mixer can be designed for operation of explosive applications according to customer specification in ATEX categories.

Temperature sensor in mixing head

Temperature sensor in mixing head for recording the product temperature during mixing. The temperature is displayed on the control panel.

Minimal melting and adhesion

Moderate circumferential speed of 4 – 15 m / s reduce product buildup.

High flexibility

The container mixer CM i4 fleX can be used for a wide variety of mixing task with many motor combinations. The mixing technology, components and accessories can be flexibly and individually adapted to customer requirements.

Functionality. A head start through innovative mixing technology.

As the inventor of the container mixer, we at MIXACO feel committed to innovation in industrial mixing technology. With the new container mixer CM i4 fleX, we are once again taking a big step forward into the future of industrial mixing.

The container mixer CM i4 fleX is a further development of the proven container mixer concept. However, the CM i4 fleX has new features that make the container mixer even more attractive.

In contrast to the container mixer Multitool™ it has a completely new type of flat mixing head, which offers significant advantages for cleaning. The mixing tools do not have to be removed for cleaning. The design of the container mixer without a base plate also significantly reduces the cleaning effort.

The container mixer CM i4 fleX is therefore particulary suitable for applications in which different recipes require frequent cleaning of the mixer. The additional efficiency is an important cost reduction factor in your production.

The CM i4 fleX can be used for operation over several floors in your production thanks to its mobile containers and accessories, just like the container mixer Multitool™ and container mixer Vortex™. Via appropriate connections the container mixer can be emptied dust-free directly into extruders, kneaders, secondary vessels, weighing and bagging devices in the next process step.

With its revolutionary mixing system, the container mixer CM i4 fleX opens up versatile application possibilities for the production of numerous products. Another option is the use of multiple different container sizes with one mixer.

Industry 4.0 / IoT (Internet of Things)

This mixer represents the features of Industry 4.0 / IoT (Internet of Things) used in the mixing industry. Excellent mixing flexibility, high quality and cleaning effort reduced to a minimum are its distinguishing features. Equipped with the MIXACO Control Center (MCC), we set another milestone for highly efficient mixing plants. The MIXACO Control Center is available via web browser and provides, among other things, an overview of your mixer park.

What would you like to mix?
In 2 minutes to your mixer.

Control System. Safe, efficient and economical.

The control of the container mixer CM i4 fleX is based on a Siemens S7 PLC and meets today’s requirements for safety, efficiency and economy. The development and programming of the control system from a single source ensures optimum integration of the mixer components. Alternatively, it is also possible to use Allen-Bradley components (incl. Panelview operating unit).

The control can also be designed according to UL / NEMA. In addition, the control can be equipped with an interface for data exchange to a higher-level control.

Siemens TP700

Up to 99 mixing programs with ten work steps each can be created in tabular form via the TP700 touch control panel. Data acquisition and storage of the measured values takes place.

Allen Bradley

Control to UL / NEMA standards with an Allen Bradley PLC and Panelview control panel.

Mixing positions. Basic, mixing and cleaning position in detail.

Basic position

In the basic position, the mixing head is oriented downwards and is loaded with a container containing the raw materials. The container is automatically positioned correctly and lifted to the mixing head via the container lifting device. Container and mixing head now form the mixing chamber.

Tilting process

The swiveling process is performed via the motorized swiveling device into the mixing position (180°). The mixing container is upside down after the swiveling process, the raw materials fall onto the mixing tools.

Mixing position

As soon as the mixing position is reached, the mixing process can be started, the mixing tools begin to rotate.

Cleaning position

In the special cleaning position, the mixing head can be cleaned quickly and easily – without having to remove the mixing tool.

Mixing methods. Various mixing techniques can be used.

The container mixer CM i4 fleX is used in a wide variety of applications, for example in powder coatings, in masterbatches, in the preparation of toner, color concentrates or additives.

With its revolutionary mixing system, the MIXACO container mixer CM i4 fleX opens up versatile application possibilities for the manufacture of numerous products.

Another option is to use multiple container sizes with one mixer to allow different batch sizes with only one machine.

  • Homogenize
  • Dispersing
  • Wetting
  • etc.

The most flexible container mixer available.

Our industrial container mixer CM i4 fleX offers all the functions and mixing processes of our proven container mixer concept. Temperature-reduced mixing is also possible with the CM i4 fleX.

The novel mixing system of the MIXACO container mixer CM i4 enables the processing of countless raw materials from a wide range of industries:

Innovative mixing tools. Designed for mixers with flat mixing head.

The MIXACO mixing tool i4 fleX was specially developed for use in a mixer with a flat mixing head. The innovative design of the i4 tool enables good mixing stream formation, even at moderate peripheral speeds. These amount to 4 to 15 m/s, depending on the application. Excellent homogenization and color application are guaranteed.

Due to the large distance to the mixing head base, the mold can be cleaned while installed. The large distance to the mixing head and also to the container as well as the innovative geometry of the i4 fleX mold minimize material caking, which also significantly simplifies cleaning.

The advantages of the new i4 fleX tool

  • Short mixing times with excellent homogenization of the material
  • Moderate temperature entry due to low circumferential speeds (4 – 15m/s)
  • Minimal product adhesion due to innovative geometry and large distances to mixing head and container
  • Cleaning of the mold and mixing head can be done with the mold in place

Additional features. From ATEX to remote maintenance.

The MIXACO container mixer CM i4 fleX can be expanded in many ways. Additional adaptations can be developed in cooperation with our engineers according to your individual requirements. We will be happy to advise you on the possibilities:

  • Suction device
  • Temperature measurement of the mixed material
  • Aeration and feeding during the mixing process
  • Dosing of liquids and gases during the mixing process
  • Data recording and evaluation
  • Remote maintenance
  • Compatibility with existing plants and containers
  • Advanced stainless steel design of the container mixer
  • Wear protection of the tools
  • Addition possibility in mixing position
  • Special coating
  • Coatings
  • AGV (Automatic Guided Vehicle) compatibility
  • ATEX/NEC design
  • 360° cloud monitoring (MIXACO Control Center)

i4 fleX construction sizes. We will gladly advise you.

SizesUsable Volume LiterBatch Size kgMixing Time min/Batch
CM 150/300120/24060/1203-6
CM 300/450/600240/360/480120/180/2403-6
CM 800/1000/1300640/800/1040320/400/5203-6
CM 1000/1300/2000800/1040/1600400/520/8003-6

Parameters

Bulk density: 0.5 kg/l

Filling level: max. 80%

Charging: manually

Ask us for other sizes.

As the inventor of the container mixer, we at MIXACO are committed to innovation in industrial mixing technology.

Container Mixer Accessories. For efficient Workflows.

Charging Stations

Dust-free automatic, semi-automatic or manual loading of containers.

Learn More

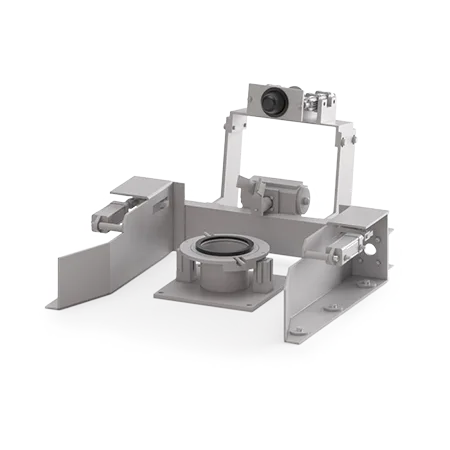

Discharge Stations

Dust-free discharge of the mixed material into downstream further processing steps.

Learn More

Container Mover

Easy and fast transport – battery-powered including charger.

Learn More

Service & Support for our container mixer CM i4 fleX. You can rely on our experienced technicians.

We install the container mixer at your site, put it into operation and integrate it into your production process.
We focus on individual maintenance tailored to your CM i4 fleX mixer. This is more efficient and cost-effective for you than long-term standard maintenance contracts.
In case of problems with your mixer, our experienced technicians are available around the clock – 365 days a year.
Remote monitoring and remote software updates mean that on-site maintenance is hardly necessary.
We put together sensible wear and spare parts packages for your mixer. We deliver further spare parts as quickly as possible.
