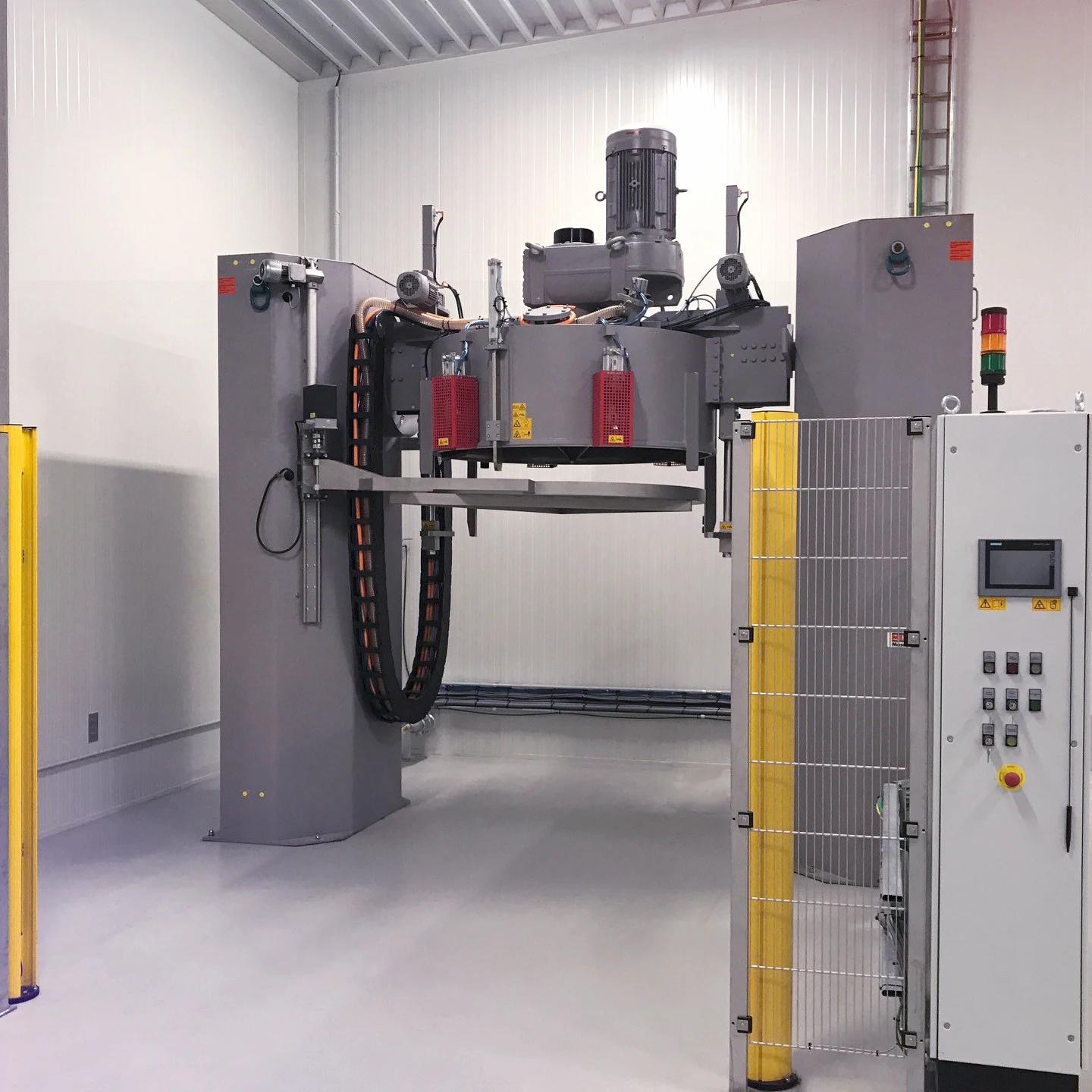

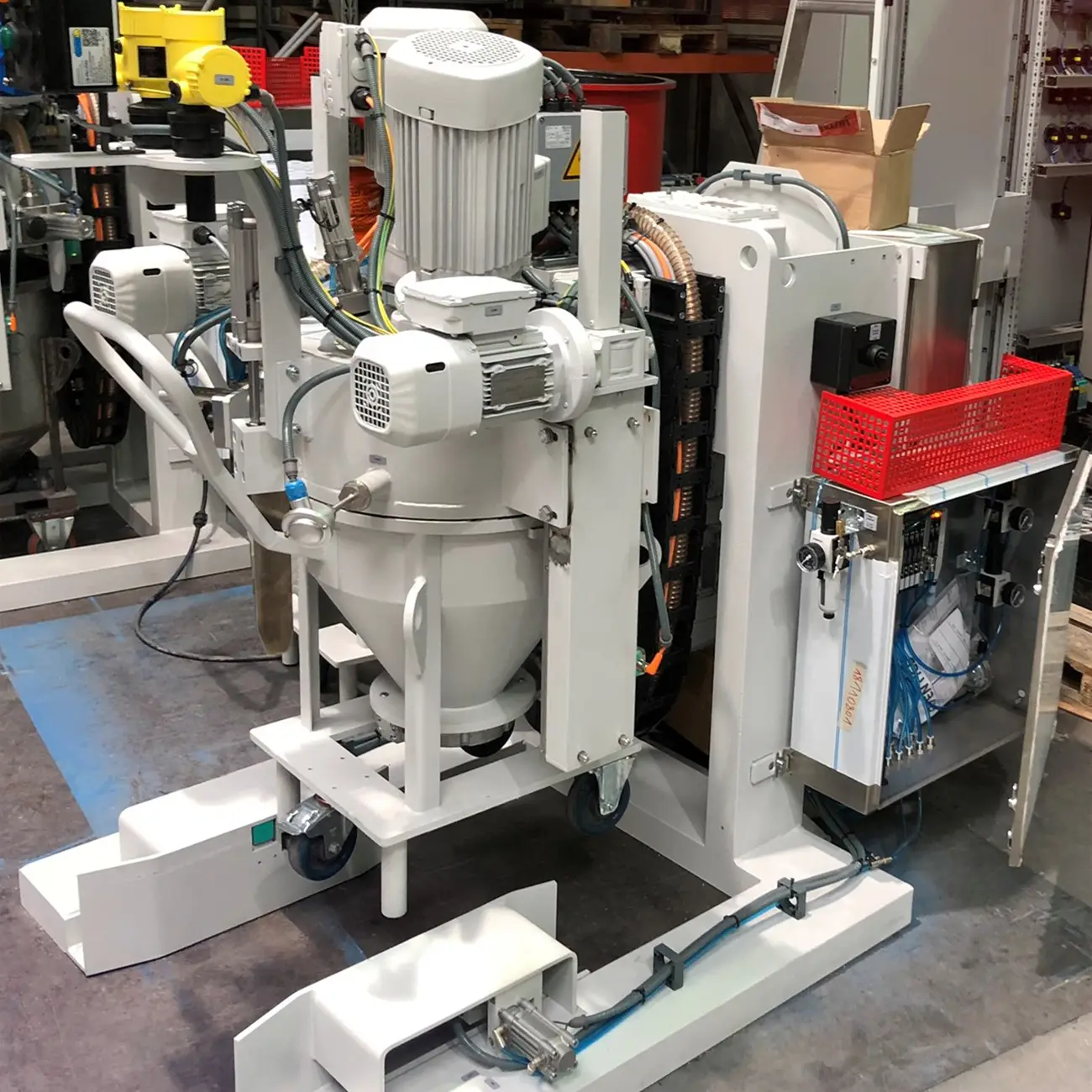

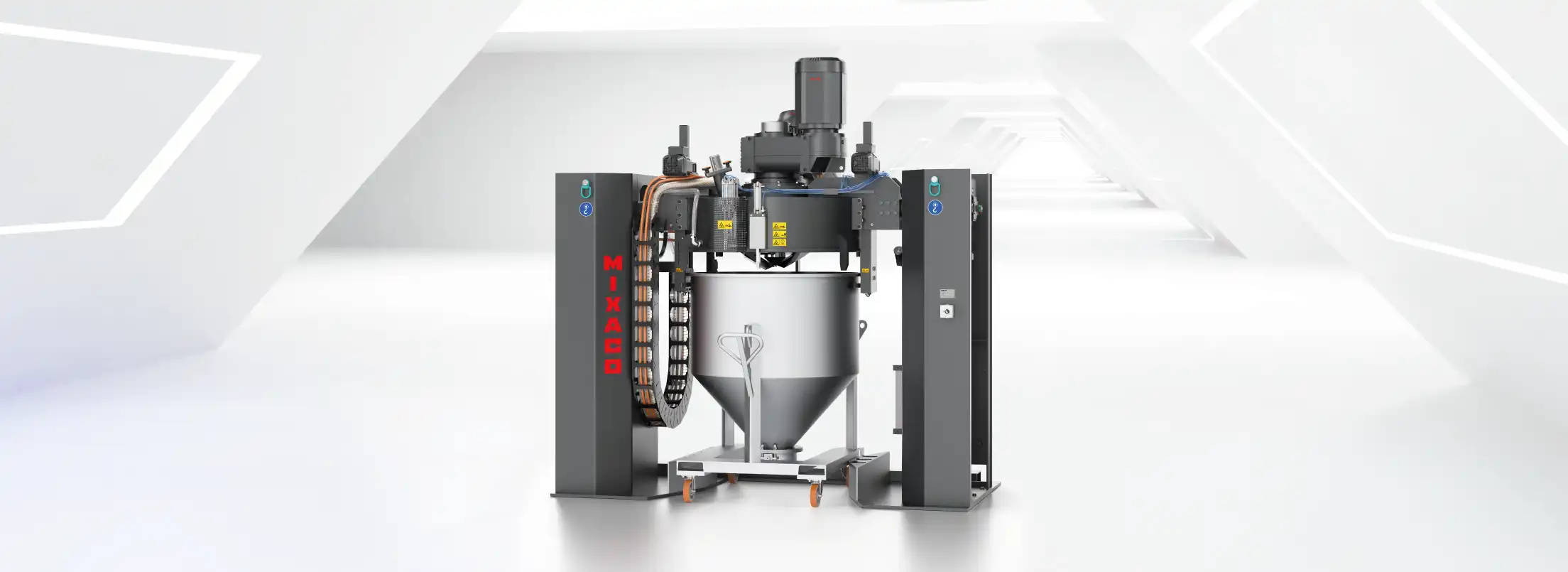

MIXACO Container Mixer Multitool™

The perfect mixer for temperature-sensitive raw materials. Different material flows increase the temperature by only one tenth compared to conventional mixers.

An innovative and patented technology with multiple mixing motors and new tools enables highly flexible mixing processes of the Multitool™ container mixer.

A special arrangement of the mixing tools prevents the materials from heating up and sticking to the tools, the mixing head and the container.

An innovative and patented technology with several mixing motors and new tools enables highly flexible mixing­ processes of the Multitool™ container mixer. A special arrangement of the mixing tools prevents the materials from heating up and sticking to the tools, the mixing head and the container.

Highlights of the MIXACO Multitool™
Minimal heating of the mix due to patented Multitool™ technology: Only 0.5-1 °C per minute
Drastic energy savings due to energy
optimzed motor drives
Very short mixing times of 3-6 minutes
Degree of comminution adjustable by
individual tool speeds
Sizes from 50 – 2000 liters volume (useful volume = 80 %)
No melting and adhesion due to temperature neutrality
See the MIXACO Container Mixer Multitool™ in action.Watch Video
Please accept the privacy policy of YouTube to be able to load the video.
Learn more
Save & reload

Benefits at a glance. Mixing temperature-sensitive materials.

Minimal Heating

Compared to conventional mixing systems, your mix is heated by no more than one tenth. This is possible thanks to the patented MIXACO Multitool™ mixing technology. Due to the temperature neutrality, melting and build-up are avoided.

Patented Mixing Technology

The patented MIXACO Multitool™ technology achieves perfect mixing qualities – in only 3-6 minutes mixing time.

The MIXACO Multitool™ tool prevents the formation of a mixing trombe during the mixing process. Lumps and agglomerates are broken up by the chopper.

Depending on the mixing tool, mixing can be highly dispersive or gentle on the material. The low drive power ensures reduced energy consumption.

The sealing systems, which are also patented, guarantee minimum maintenance costs and maximum machine availability.

Huge Flexibility in Mixing

The MIXACO Multitool™ is an extremely flexible container mixer that can effortlessly switch between a wide variety of raw materials, recipes and mixing processes. Sizes range from 50 to 2000 liters in volume (useful volume = 80%). Particle size or degree of comminution can be adjusted by individual tool speeds. Tool and motor combinations are available for a wide range of raw materials and mixing tasks. The mixing container, made entirely of stainless steel, is suitable for all raw materials including foodstuffs. You can seamlessly integrate the Multitool™ container mixer into your production processes – both manual and automatic. Integration into a multi-level operation is also possible.

Explosion Safety ATEX/NEC

The Multitool™ container mixer can be designed to operate in ATEX hazardous area applications according to customer specifications.

Easy Handling and Quick Cleaning

The ergonomic cleaning position enables user-friendly and fast cleaning – even according to 3 A hygiene standard. Precise container lifting technology guarantees fast and safe handling. Downtimes for container and mold changes are minimal.

Functionality. The patented MIXACO Multitool™.

The Multitool™ container mixer is particularly suitable for mixing temperature-sensitive substances. Mixing without temperature increase is made possible by an innovative and patented mixing process.

Here, the tools generate different material flows in the mixer, which significantly reduce heating of the mixed material.

MIXACO Control Center (MCC). 360° Cloud Monitoring for MIXACO Mixers

In the web-based MIXACO Control Center (MCC), so-called “digital twins” of your machines are created, via which you can permanently evaluate all mixer parameters in real time.

By continuously monitoring the condition of your mixers, you can benefit from maximum process quality and machine availability. The connection to the MCC is optional and possible without additional sensors on the mixer, the parameters are recorded via the existing PLC control.

Learn more about MIXACO Control Center

Innovative Browser Interface
360° Cloud Monitoring for MIXACO Mixers
Intuitive Live Control
Process Information in Real Time

MIXACO Control Center (MCC). 360° Cloud Monitoring for MIXACO Mixers

In the web-based MIXACO Control Center (MCC), so-called “digital twins” of your machines are created, via which you can permanently evaluate all mixer parameters in real time.

By continuously monitoring the condition of your mixers, you can benefit from maximum process quality and machine availability. The connection to the MCC is optional and possible without additional sensors on the mixer, the parameters are recorded via the existing PLC control.

Innovative Browser Interface
360° Cloud Monitoring for MIXACO Mixers
Intuitive Live Control
Process Informationen in Real Time

Control. Safe, efficient and economical.

The control of the Multitool™ container mixer is based on a Siemens S7 PLC and meets today’s requirements for safety, efficiency and economy. The development and programming of the control system from a single source ensures optimum integration of the mixer components. Alternatively, it is also possible to use Allen-Bradley components (incl. Panelview operating unit).

The control can also be designed according to UL / NEMA. In addition, the control can be equipped with an interface for data exchange to a higher-level control.

Siemens TP700

Up to 99 mixing programs, each with ten working steps, can be created in tabular form via the TP700 touch control panel. Data acquisition and storage of the measured values takes place.

Allen Bradley

Control to UL / NEMA standards with an Allen Bradley PLC and Panelview control panel is also possible.

Mixing positions. Basic, mixing and cleaning position in detail.

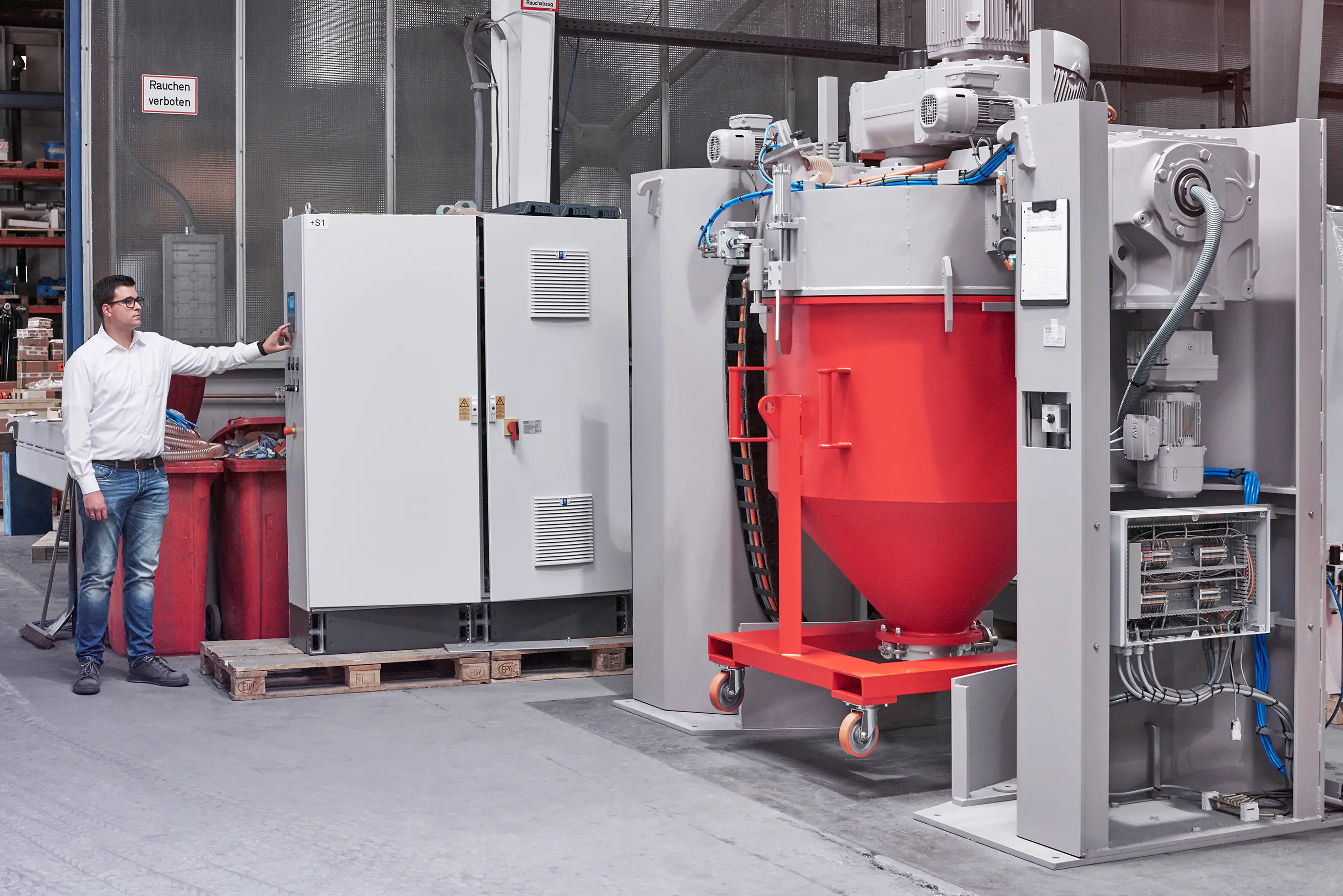

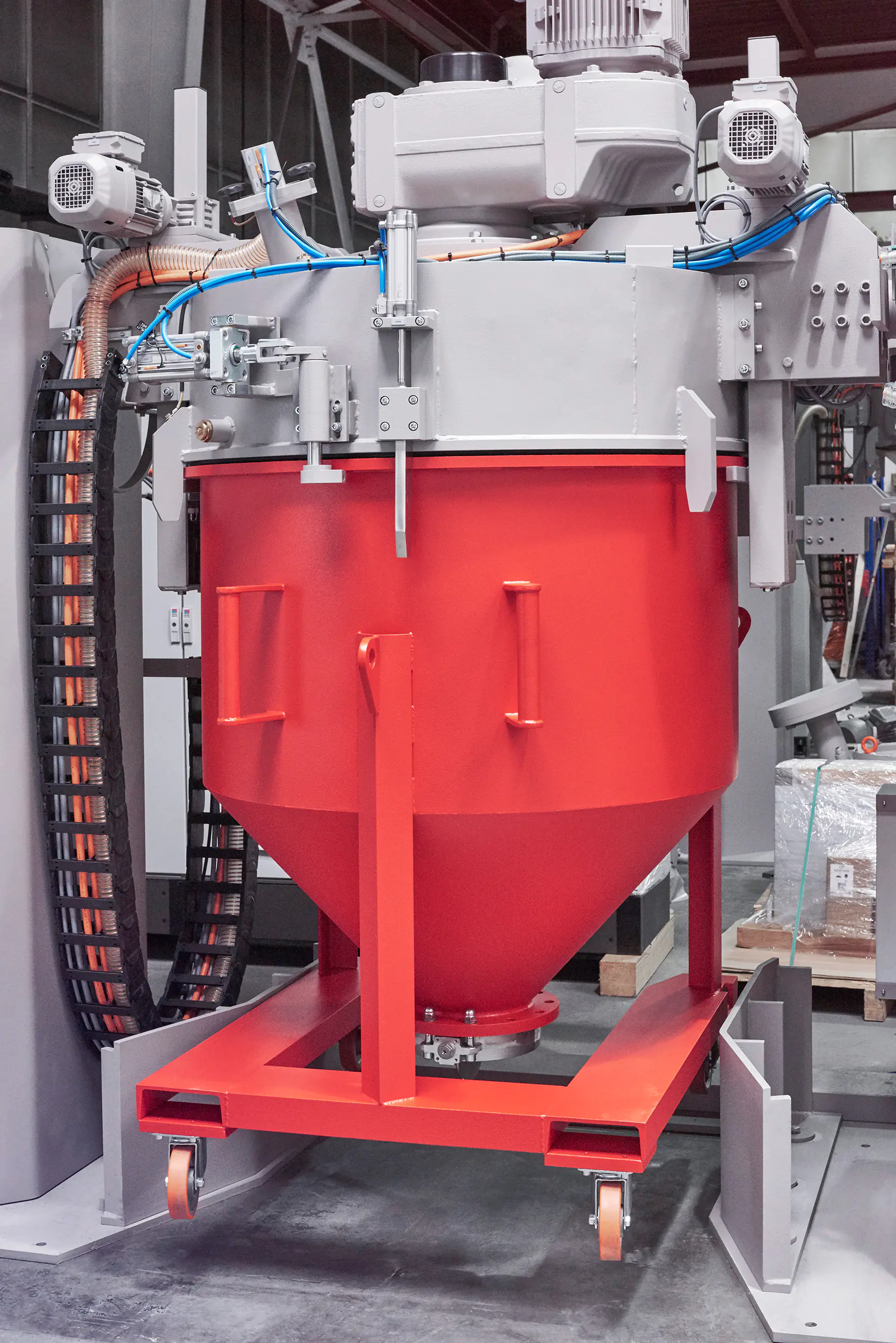

Basic Position

In the basic position the mixer is loaded, the container is correctly positioned to the mixing head and secured for the lifting process.

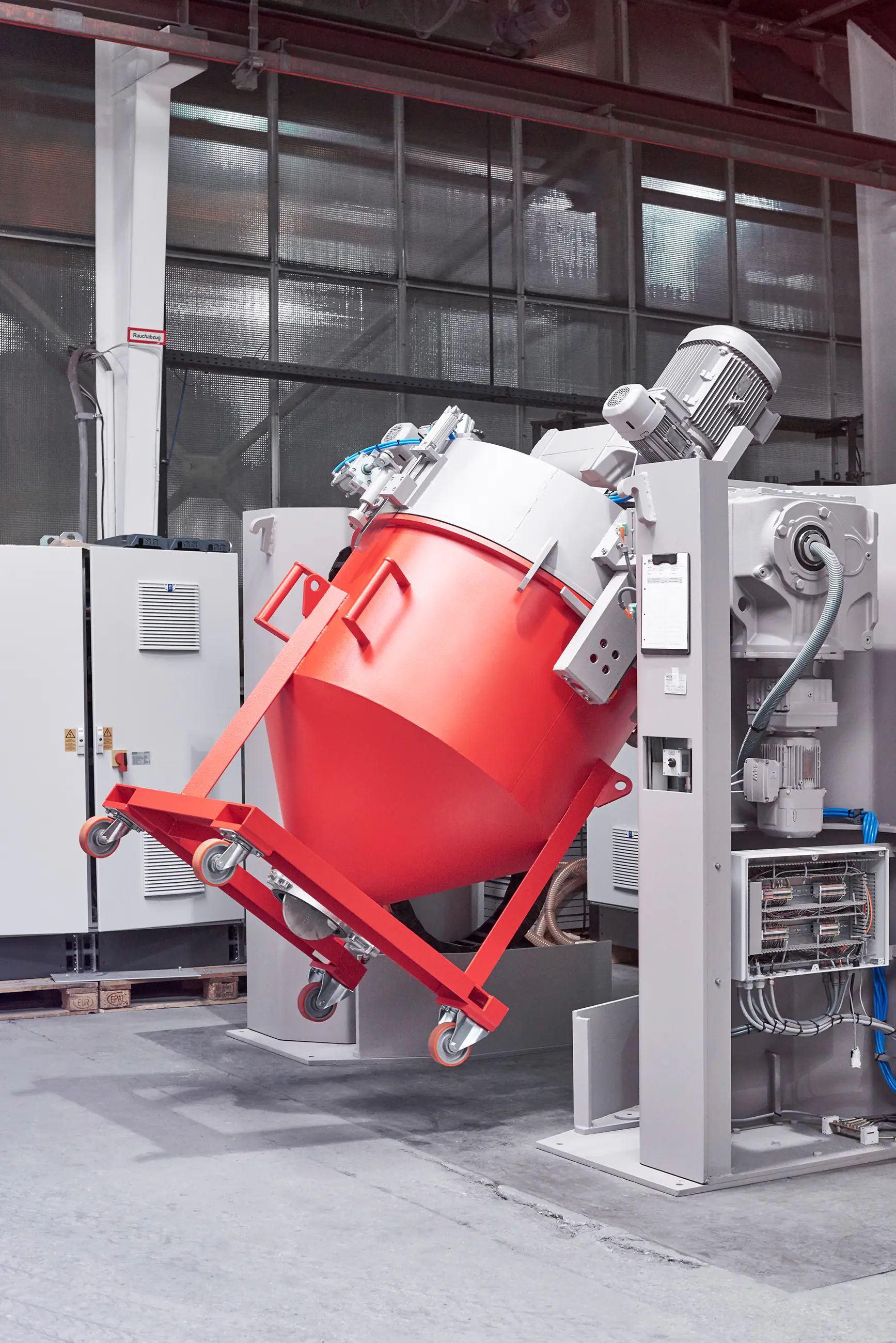

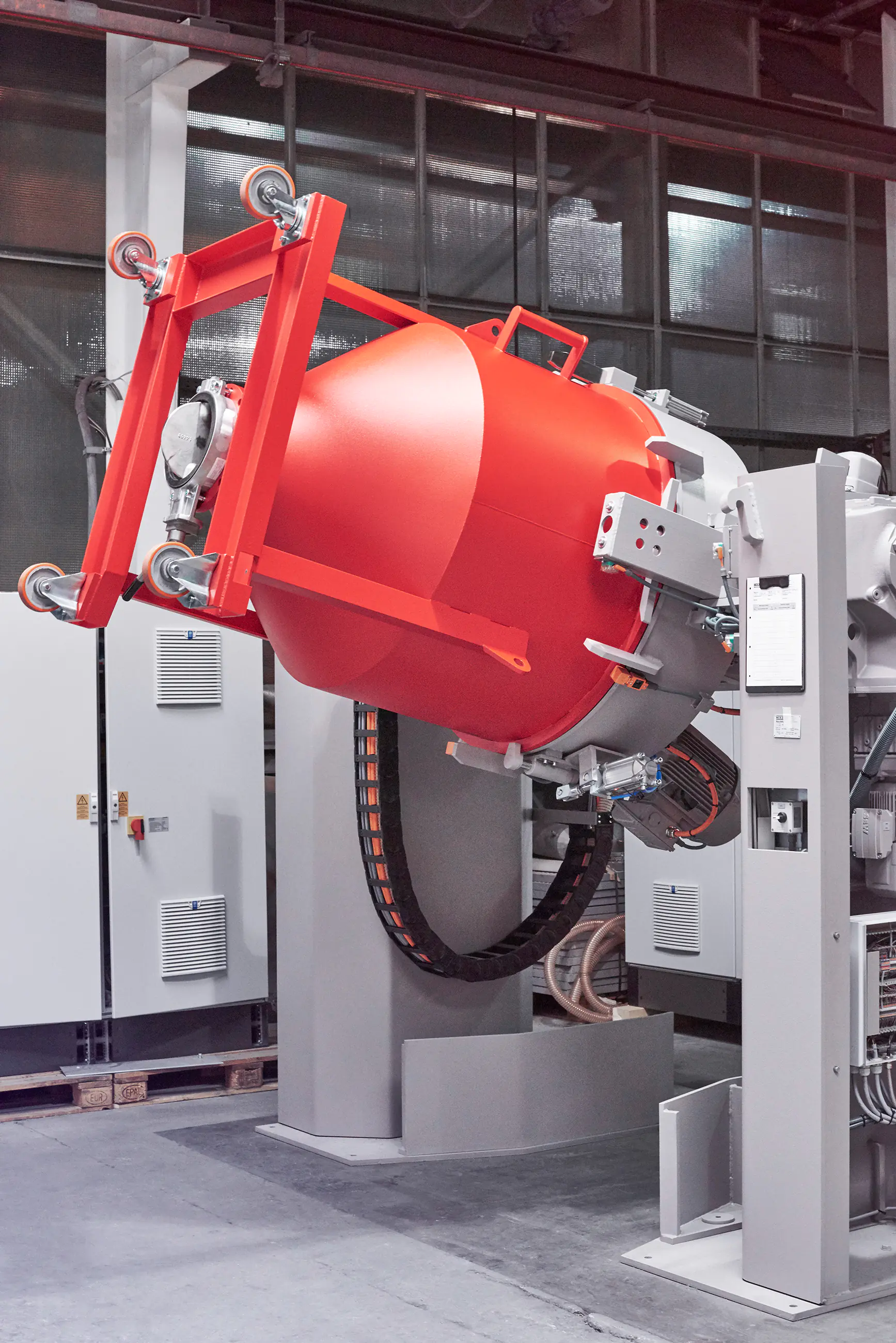

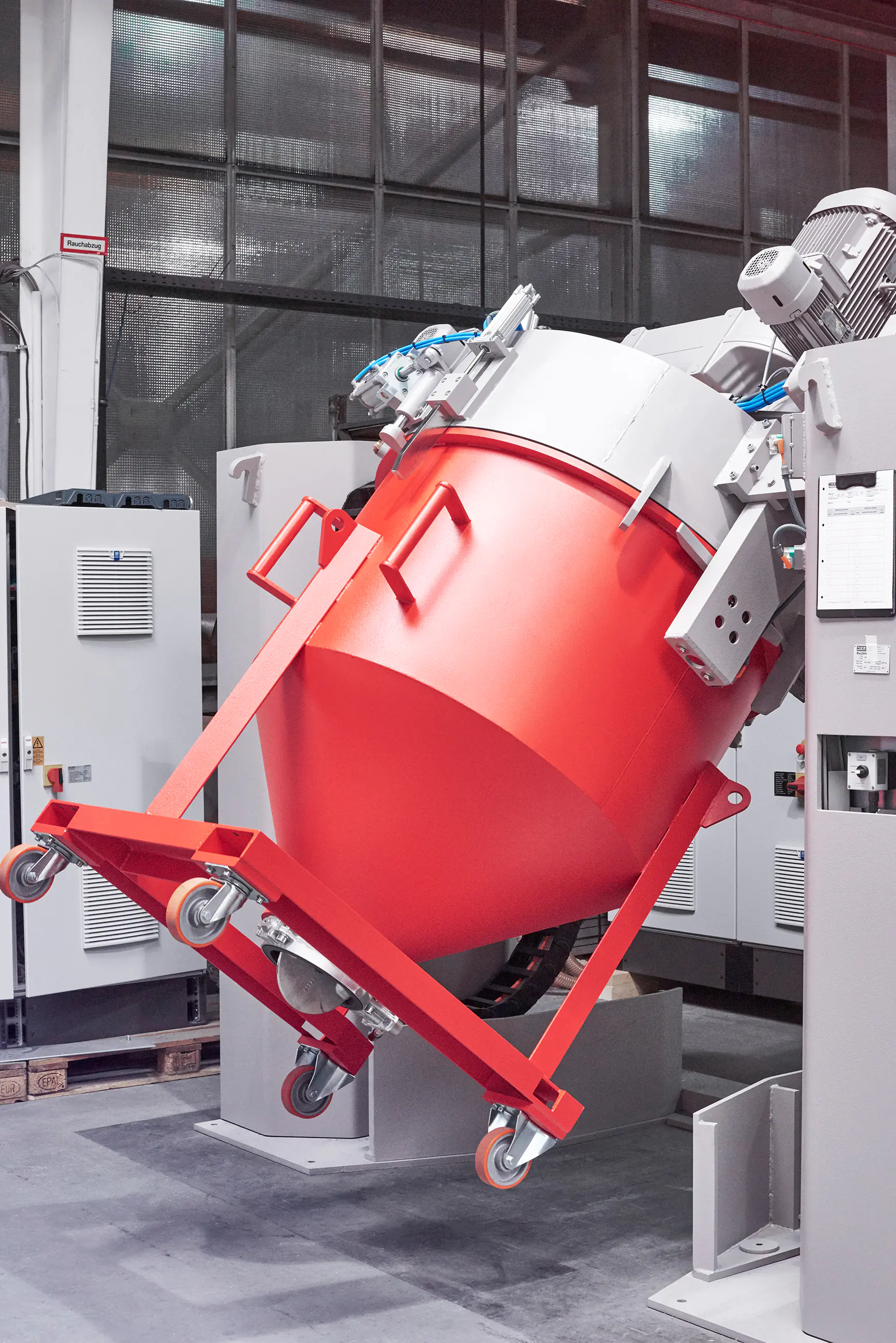

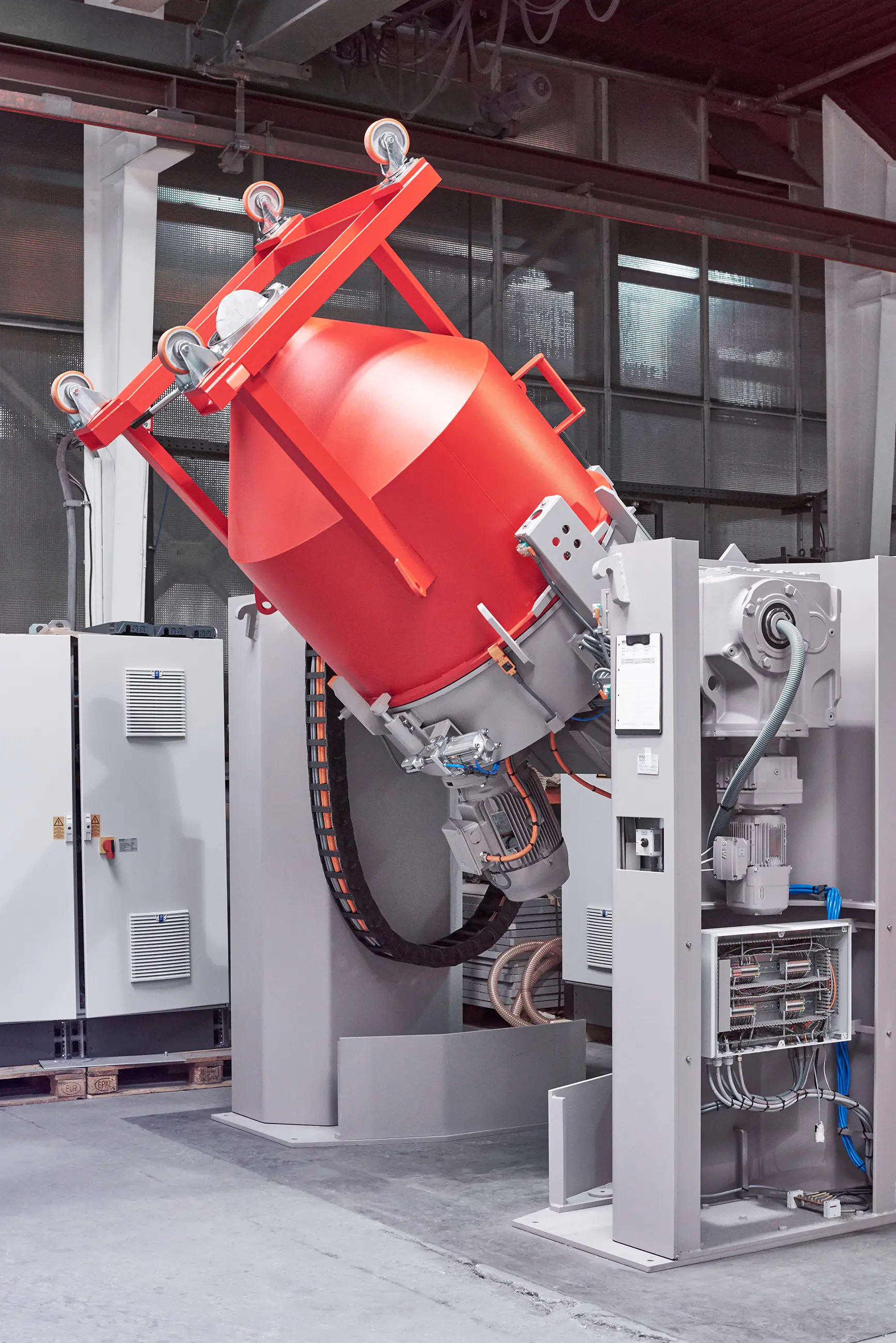

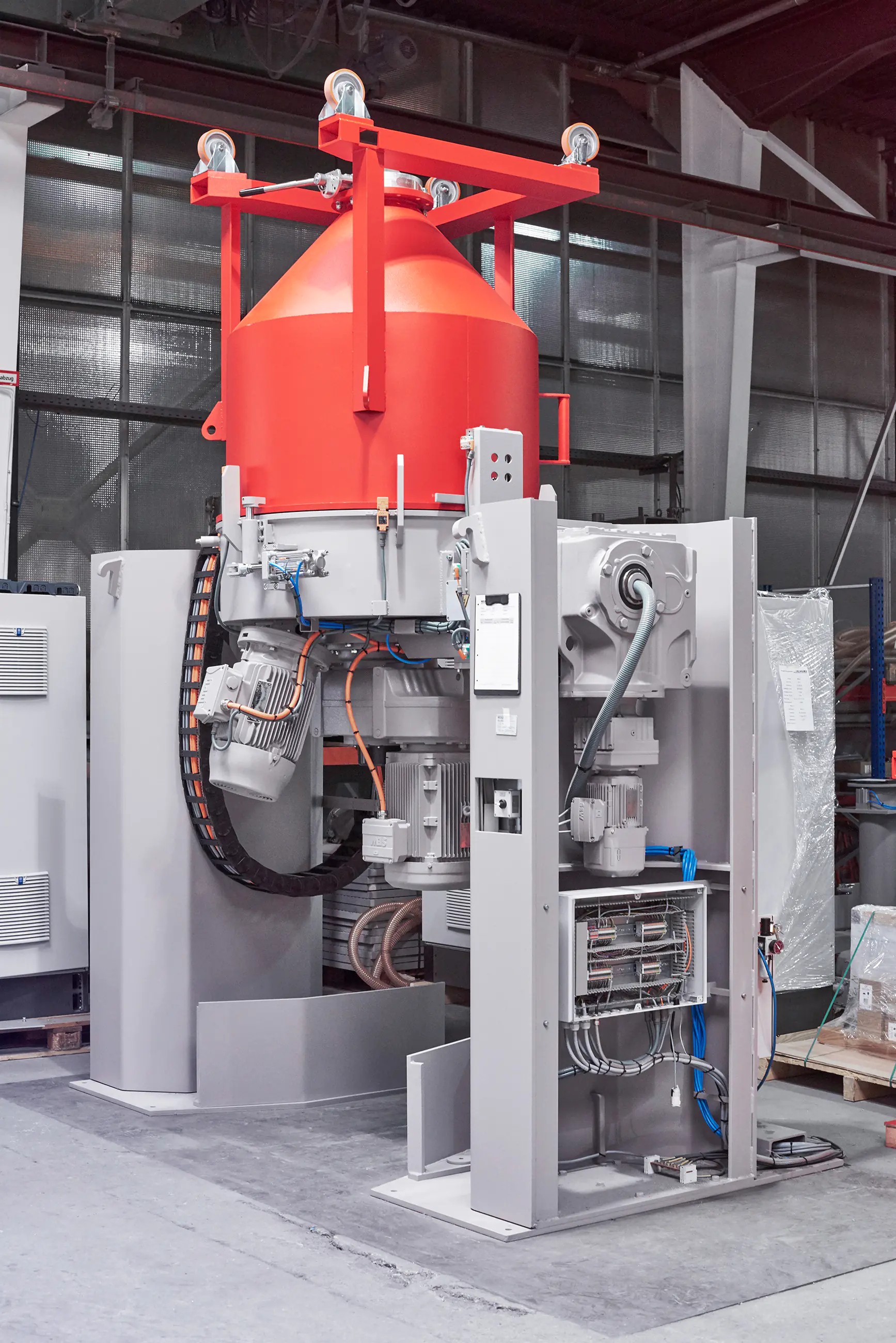

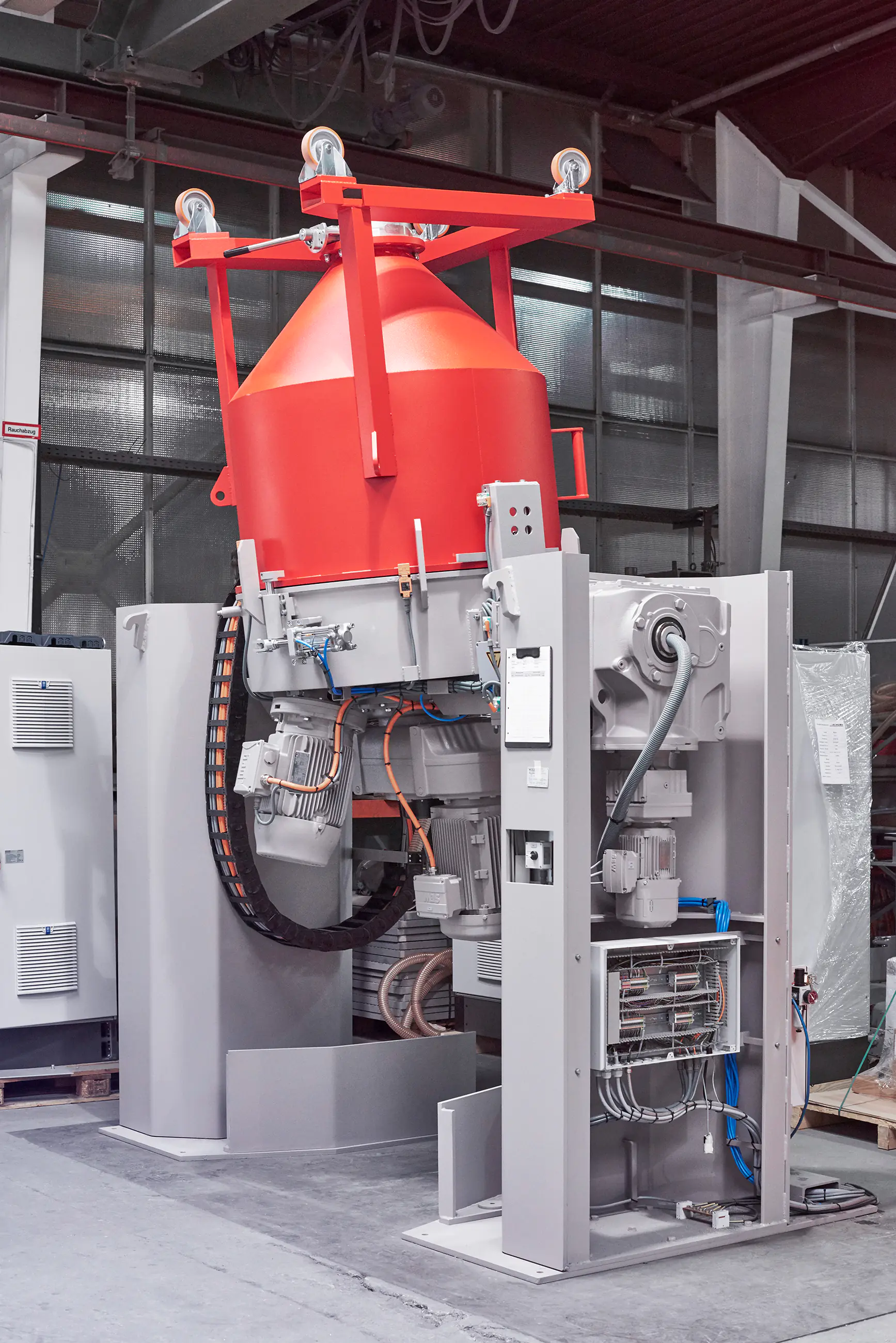

Tilting Process

The tilting process via the motorized drives by 180° into the mixing position can only take place when the mixing container is securely engaged.

Mixing Position

As soon as the container together with the mixing head reaches the mixing position after a 180° swivel, the mixing process is started.

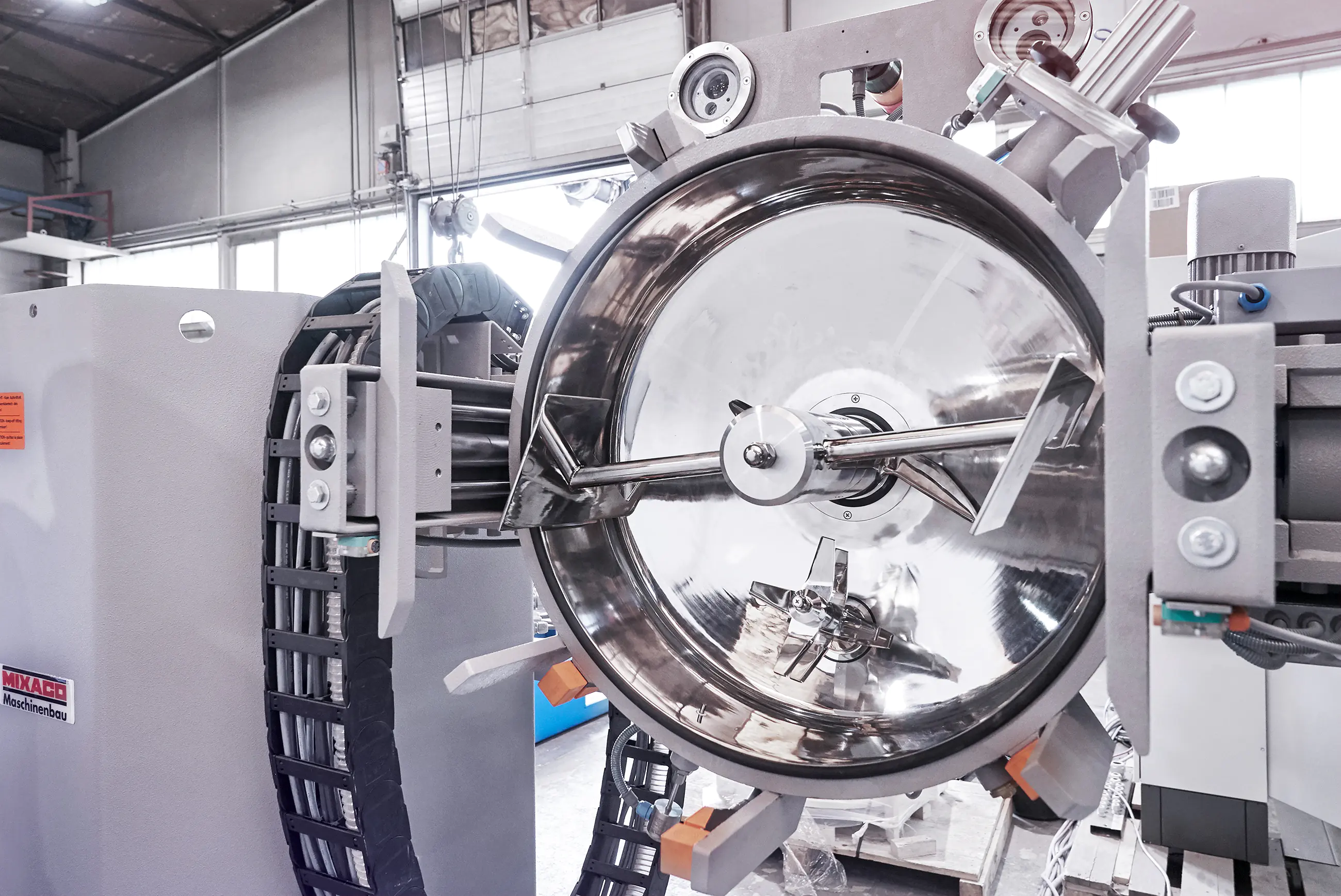

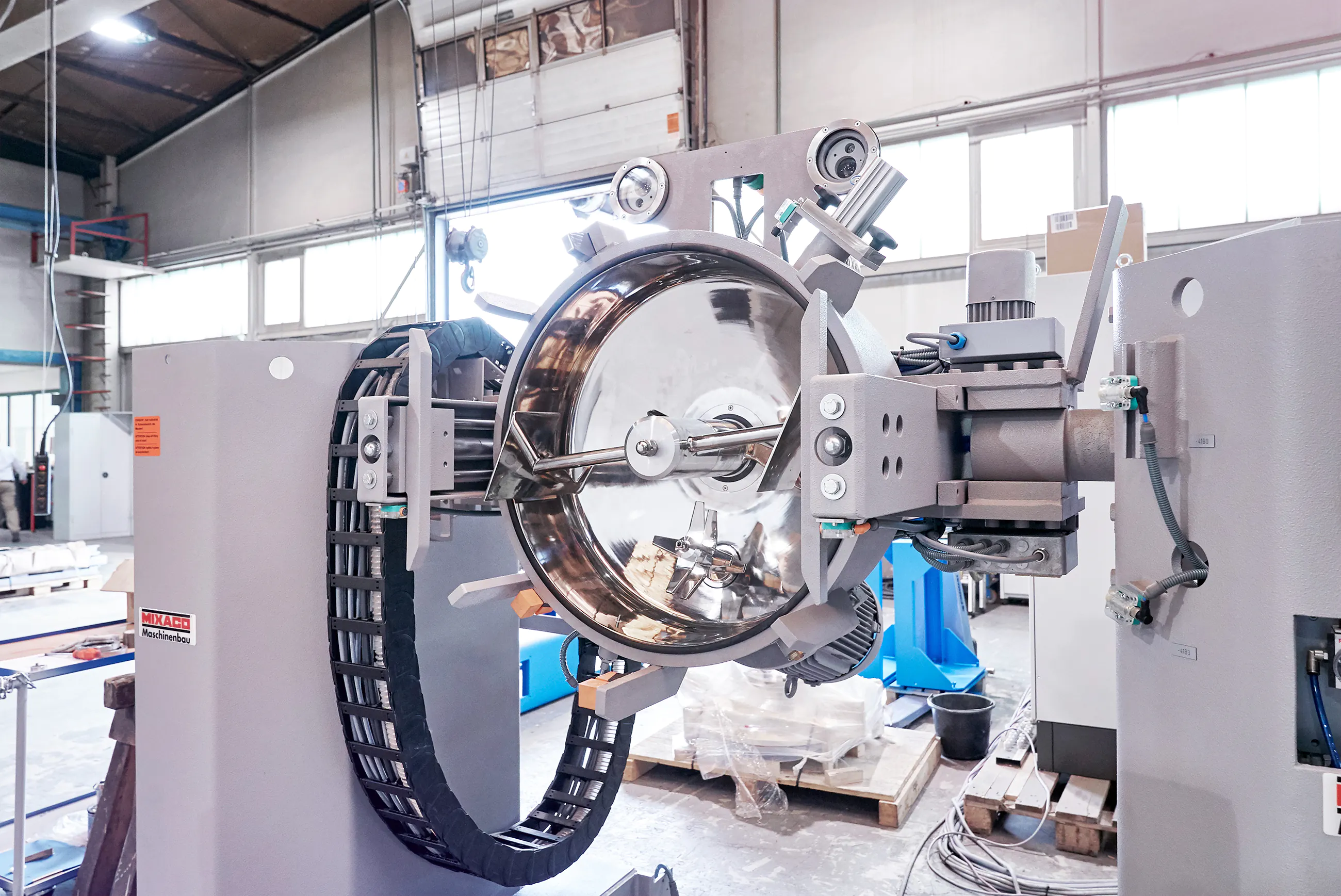

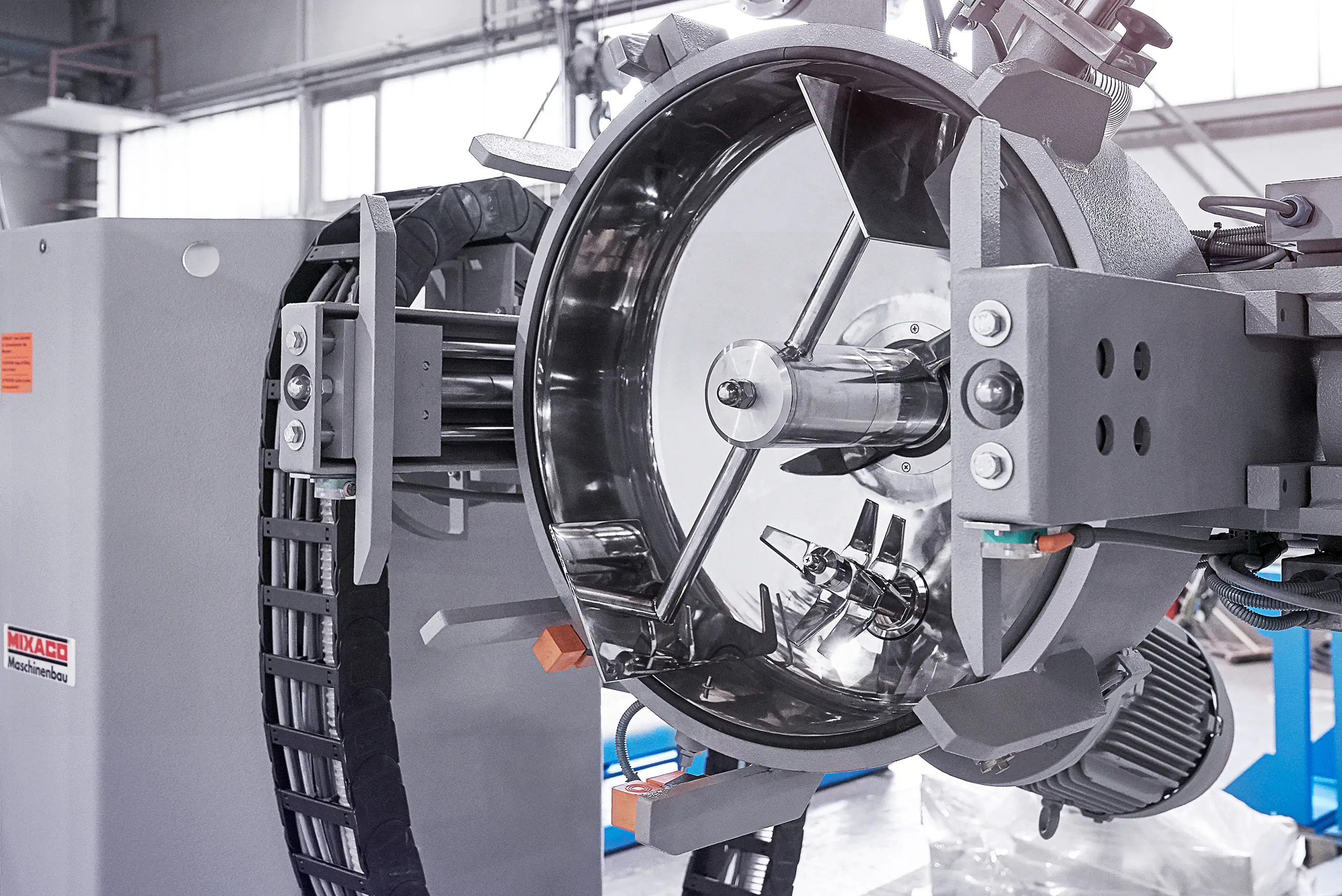

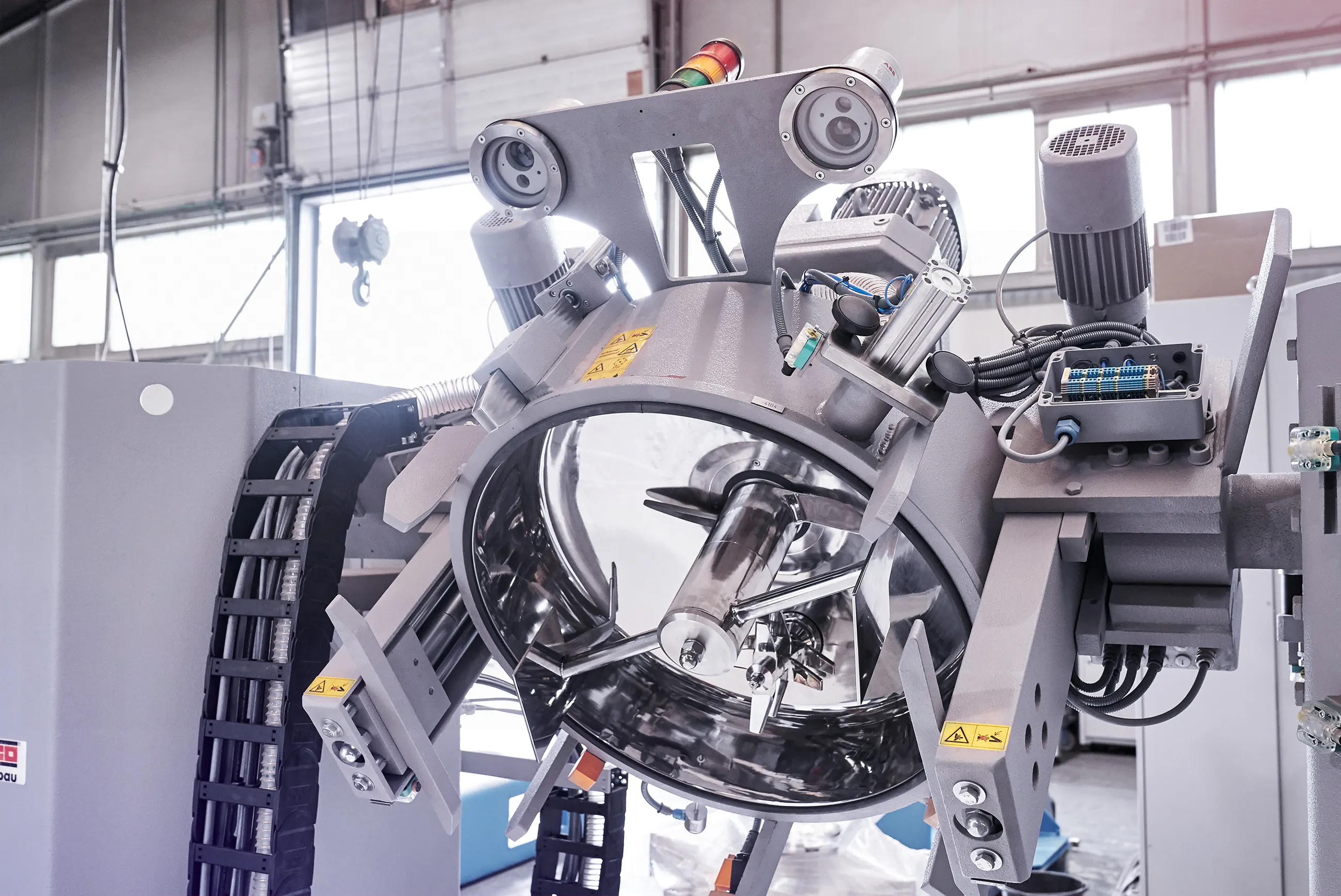

Cleaning Position

In cleaning mode and cleaning position, the mixing head can be cleaned quickly and easily – the mixing tools can be dismantled easily and without great effort.

Mixing methods. All cold mixing processes – individually matched.

With the MIXACO Multitool™ all cold mixing processes are possible. For your raw materials and mixing tasks, the mixing tools and mixing parameters can be individually adjusted to achieve an optimum mixing result. The MIXACO Multitool™ performs the following tasks with ease:

  • Homogenize
  • Dispersing
  • Wetting
  • Digestion
  • Coloring
  • Absorbing
  • and much more

The mixer for temperature-sensitive raw materials.

The MIXACO Container Mixer Multitool™ is a very flexible container mixer that can perfectly process almost all raw materials with its revolutionary mixing technology.

In particular, temperature-sensitive raw materials such as paints, powder coatings, additives, masterbatches, PVC, compounds, flavors, proteins, enzymes, etc. can be mixed with the Multitool™ container mixer without loss of quality.

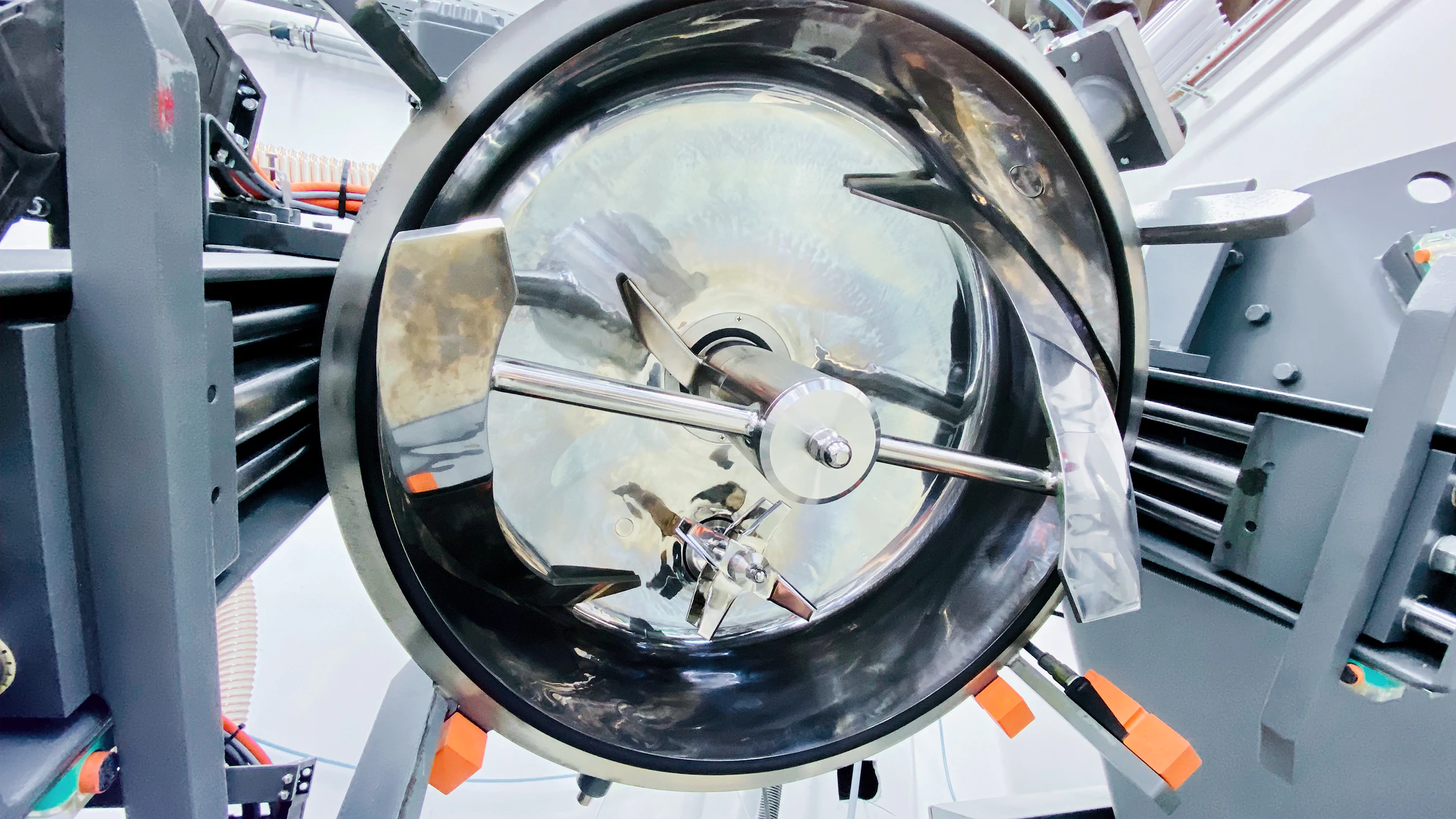

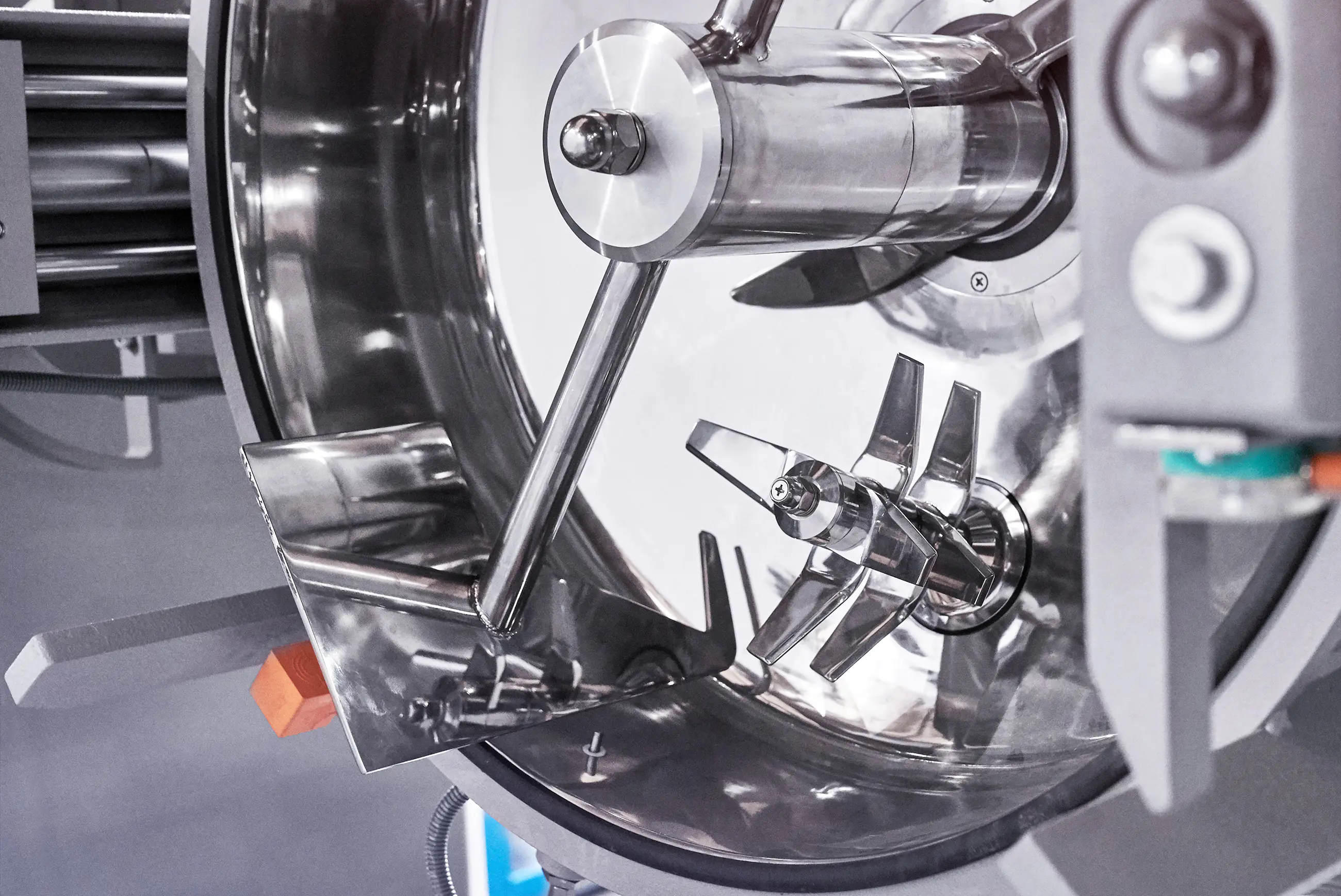

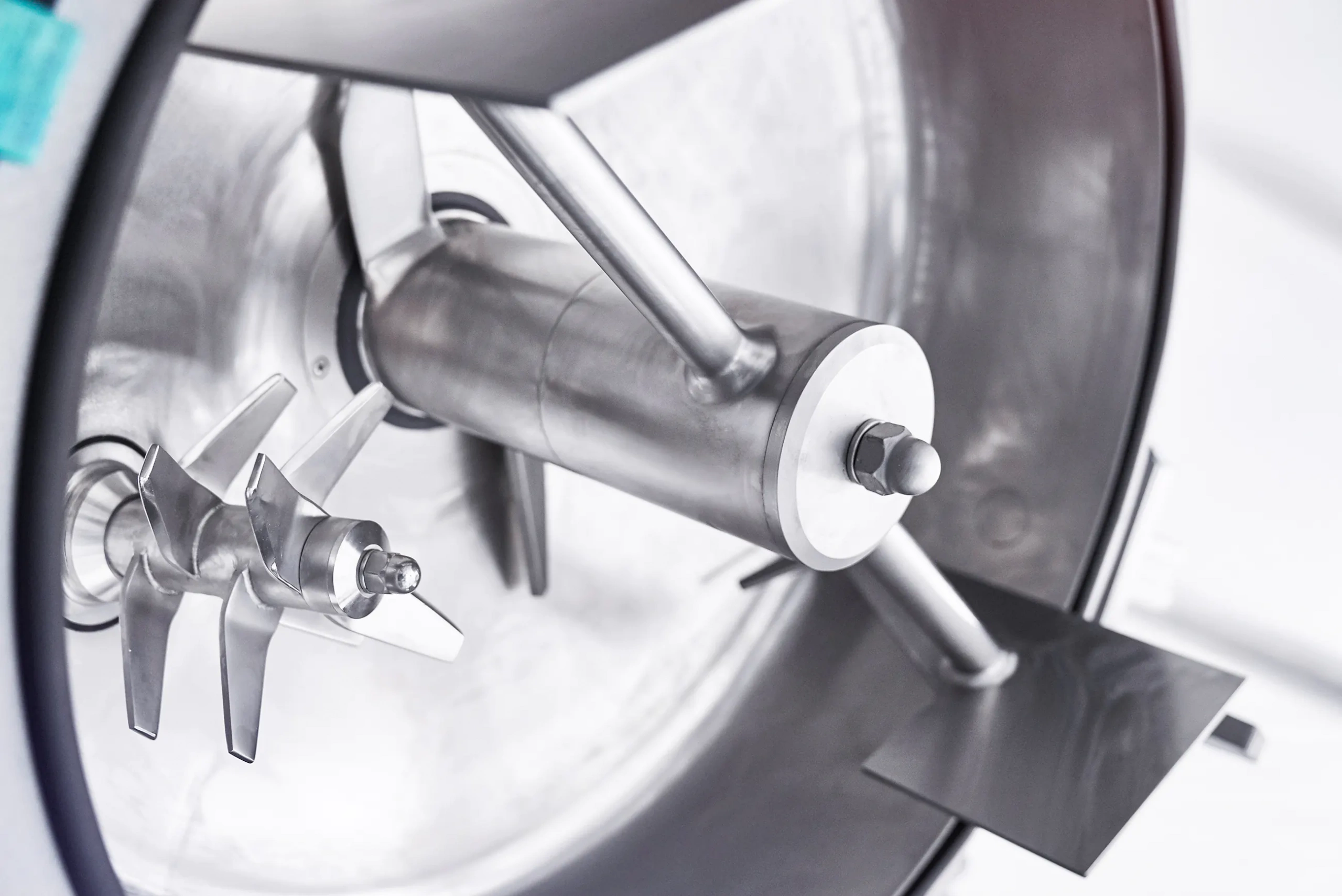

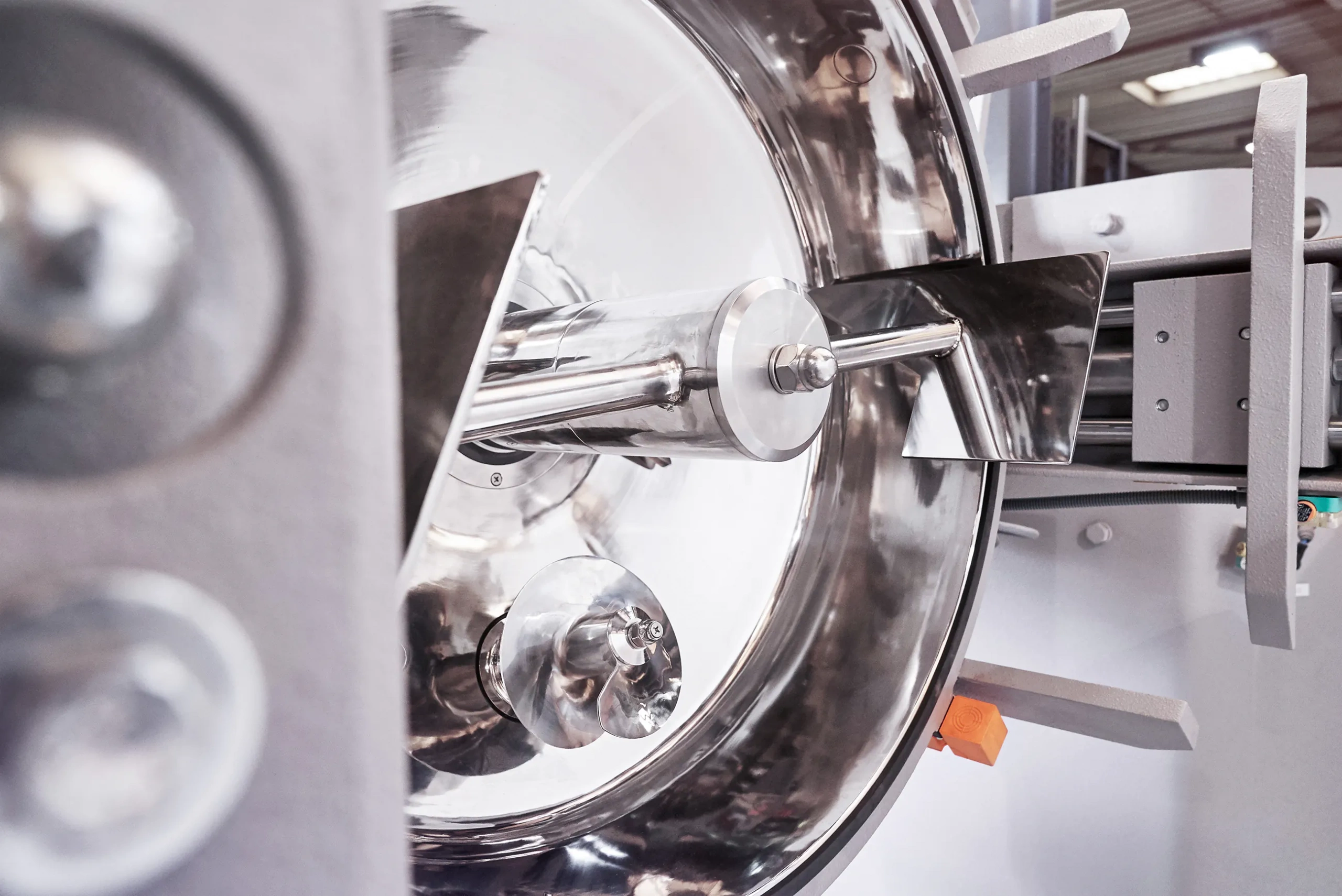

Mixing tools. The patented MIXACO Multitool™-technology.

The respective transport tool (blue material stream) moves the product to the additional tool (red material stream). The mix is only briefly in the effective range of the additional tool. This results in only minimal heating. The shape and the peripheral speed of the transport tool have an influence on the material transport to the additional tool and on the mixing of the materials.

Benefits of the Multitool™

  • minimal heating
  • reduced build-up on the mixing head / container
  • energy saving due to low drive power
  • no mixing currents during the mixing process
  • different mixing tasks from highly dispersive to gentle can be realized (depending on the additional tool)
Push tool

The “Push” transport tool moves the mix at 3-4 m/s.

Pull tool

The “Pull” conveying tool moves the mix in the container at 1-2 m/s.

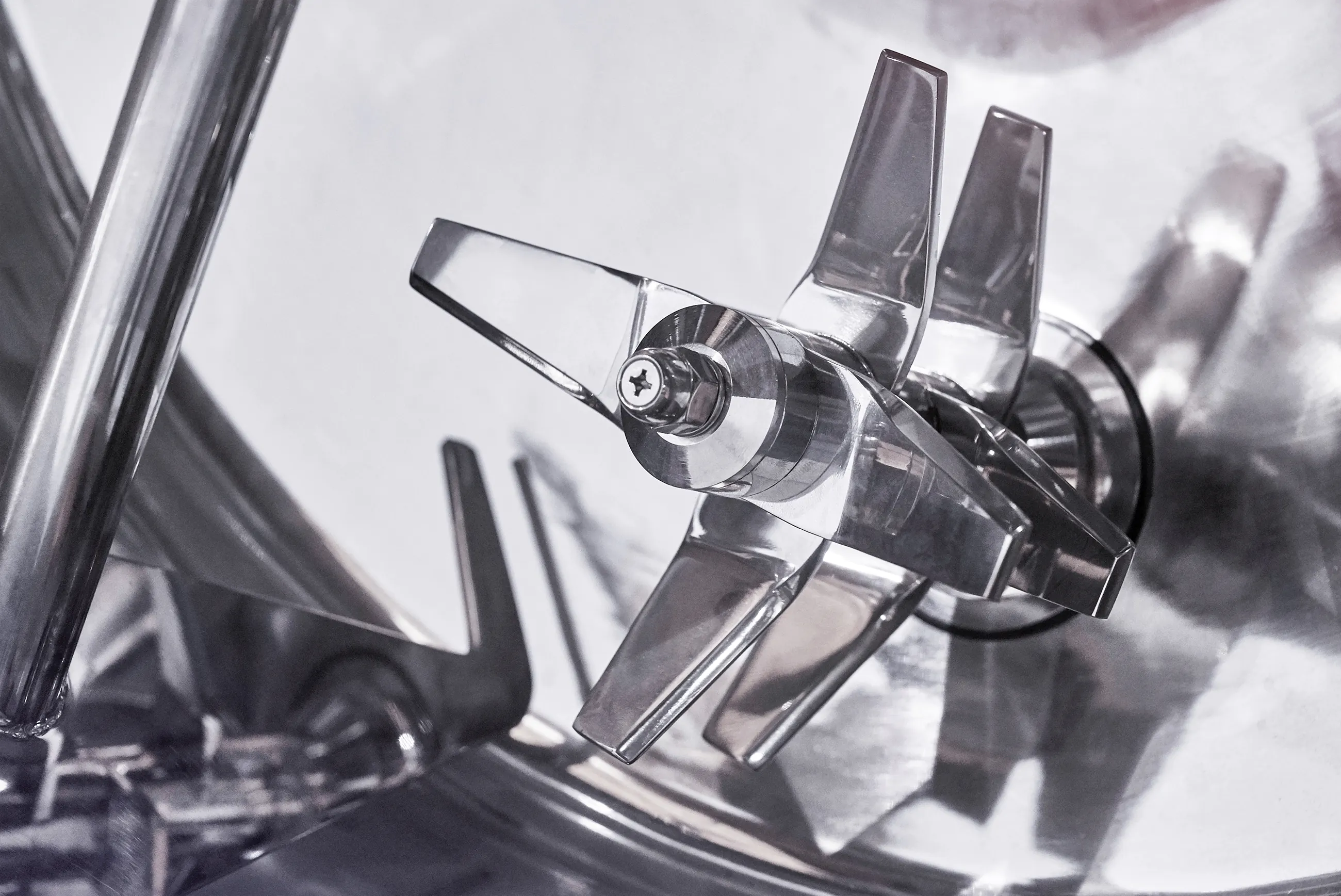

Additional chopper tool
  • homogenizing and dispersing
  • 30-40 m/s
  • highly dispersive / high shear force
  • used for intensive comminution of product agglomerates

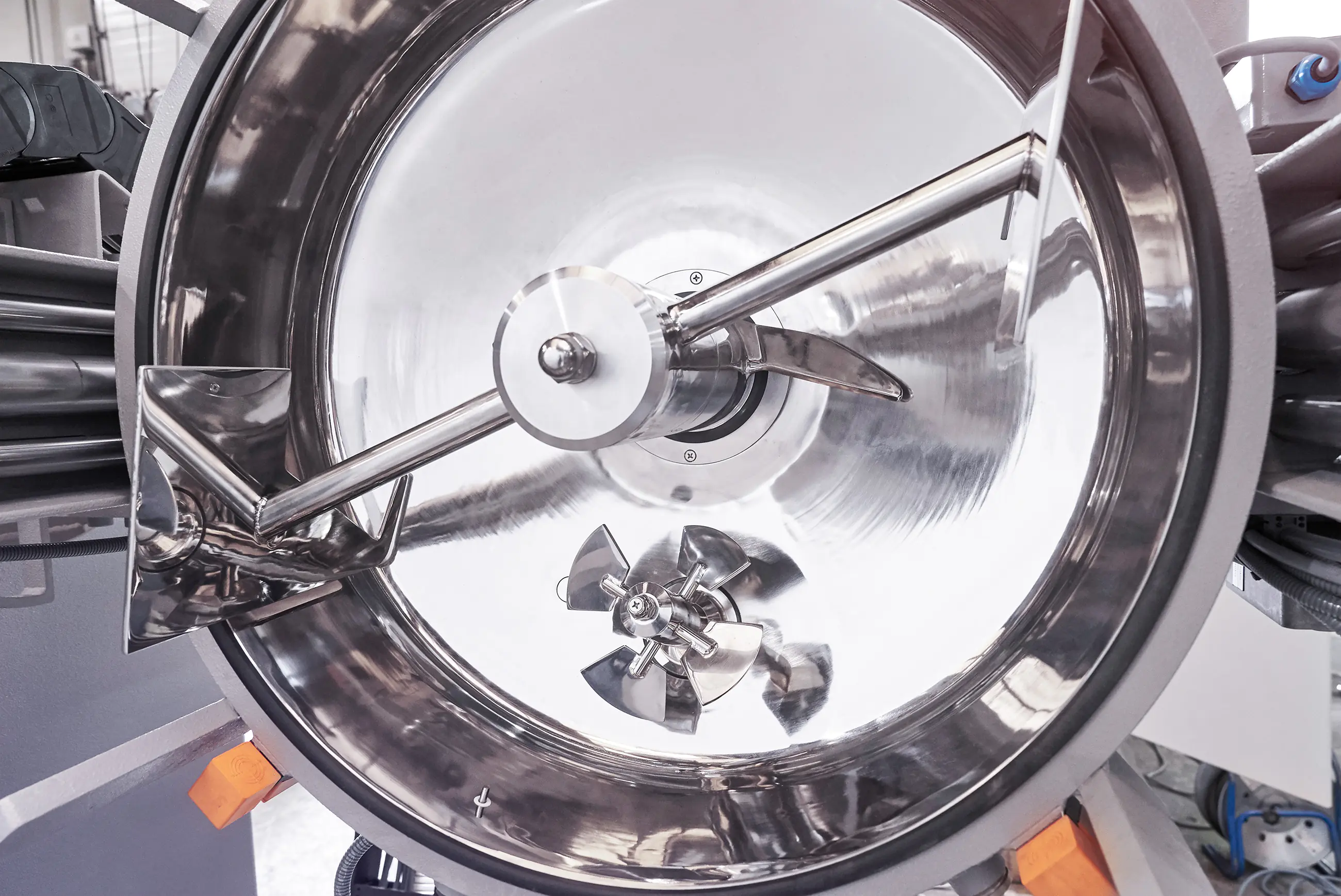

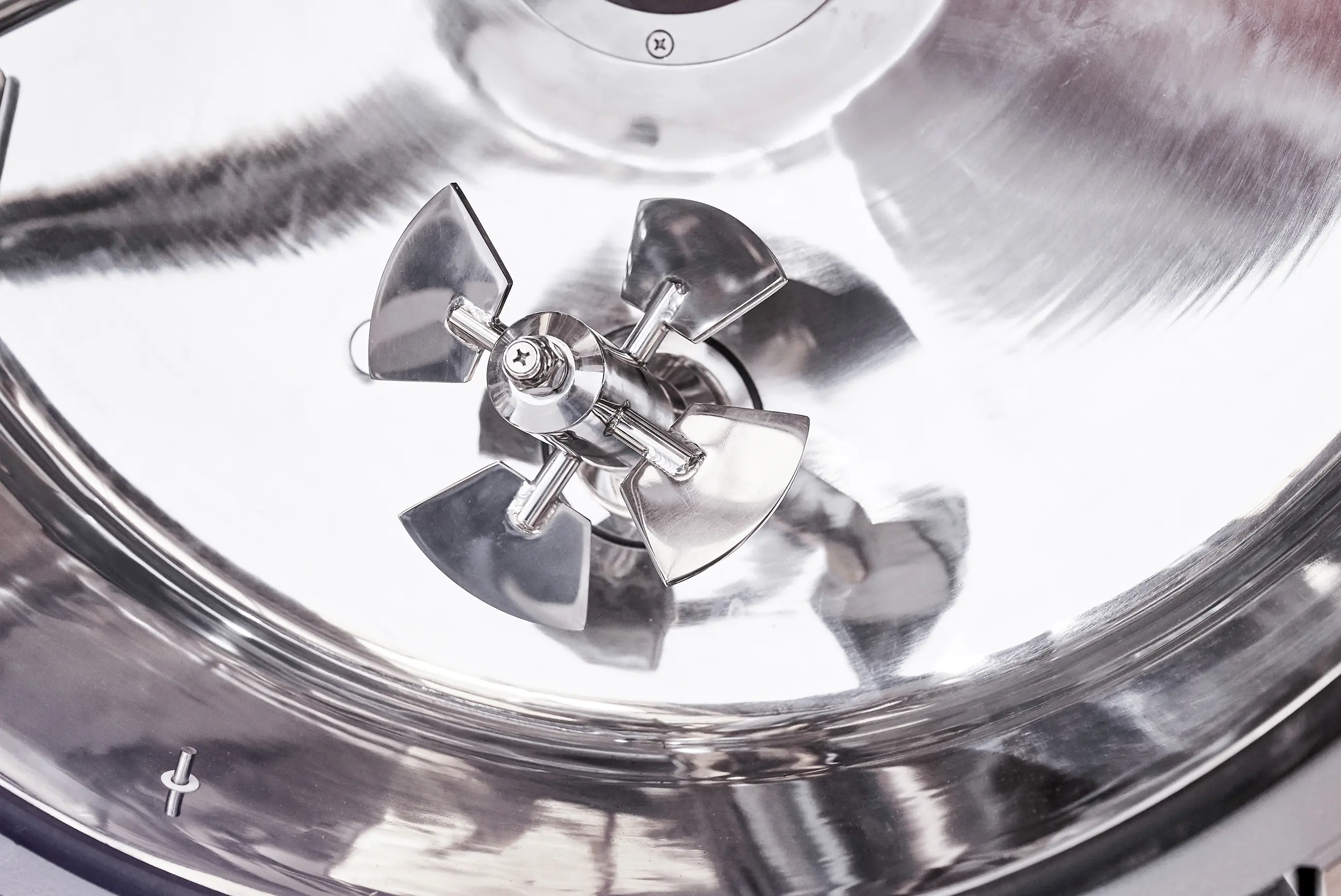

Additional paddle tool
  • homogenize
  • 15-20 m/s
  • reduced shear force compared to the chopper

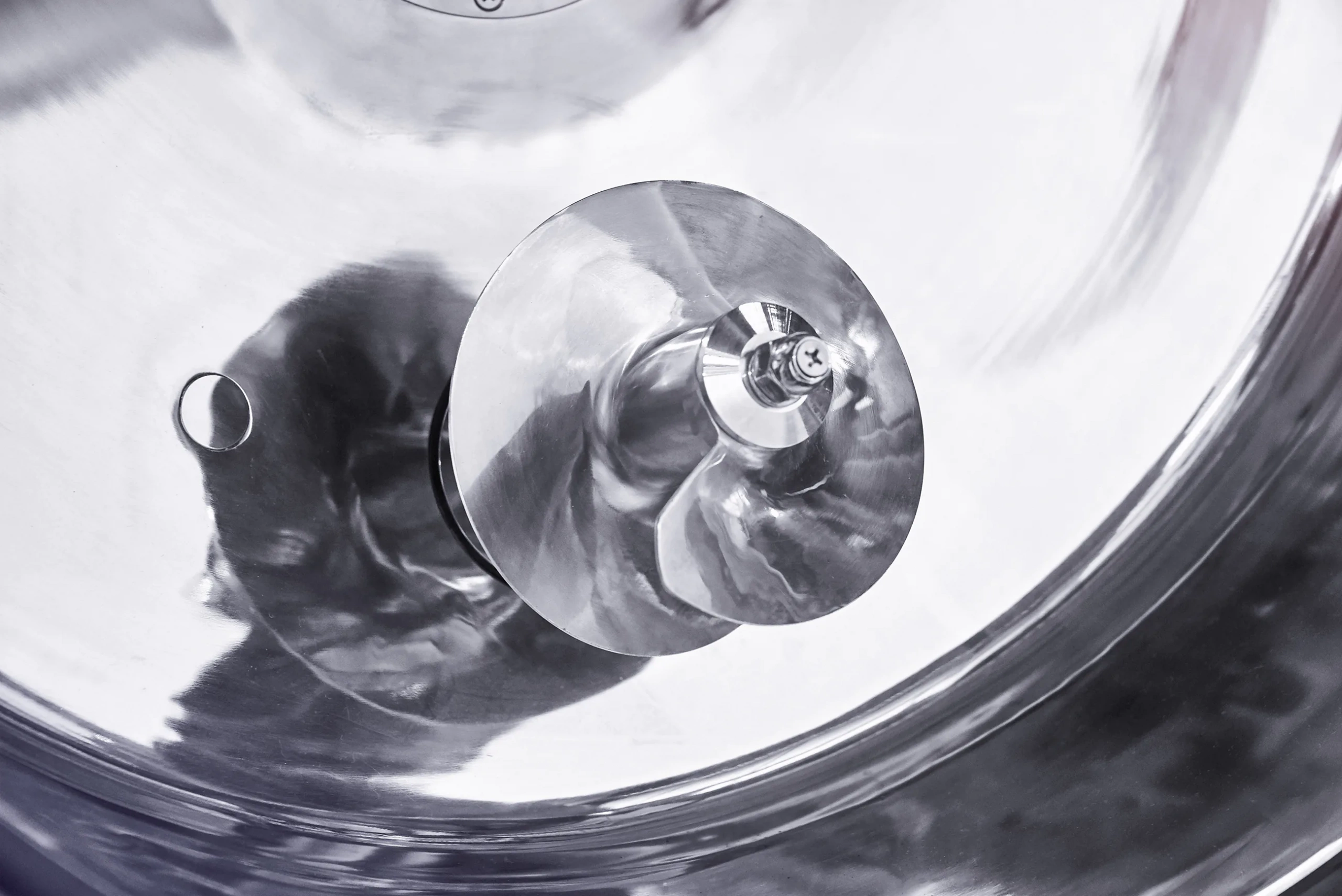

Additional screw tool
  • gentle homogenization
  • 1-15 m/s
  • lowest shear force

Additional features. From ATEX to remote maintenance.

The MIXACO Multitool™ container mixer can be expanded in many ways. Additional adaptations can be developed in cooperation with our engineers according to your individual requirements. We will be happy to advise you on the possibilities:

  • Dust extraction: Suction device at the mixing head, which extracts the fine dust produced in the mixing container after the mixing process.
  • Temperature sensor in the mixing head to detect the product temperature during mixing. The temperature is displayed on the control panel
  • Aeration and feeding during the mixing process
  • Injection: A pneumatically operated device in the mixing head for the addition of liquid or gaseous substances – the design of the injection can be adapted to customer specific requirements, e.g. longer / thinner
  • Exchange mixing head system
  • Data recording and evaluation
  • Compatibility with existing plants and containers
  • Extended stainless steel design of the container mixer
  • Wear protection of the tools
  • Special coating
  • Coatings
  • AGV (Automatic Guided Vehicle) compatibility
  • ATEX/NEC versions
  • Remote maintenance
  • 360° cloud monitoring (MIXACO Control Center)

Container Mixer Multitool™ Sizes

SizesUsable Volume LiterBatch Size kgMixing Time min/Batch
CM 50 MT40403-6
CM 150 MT120603-6

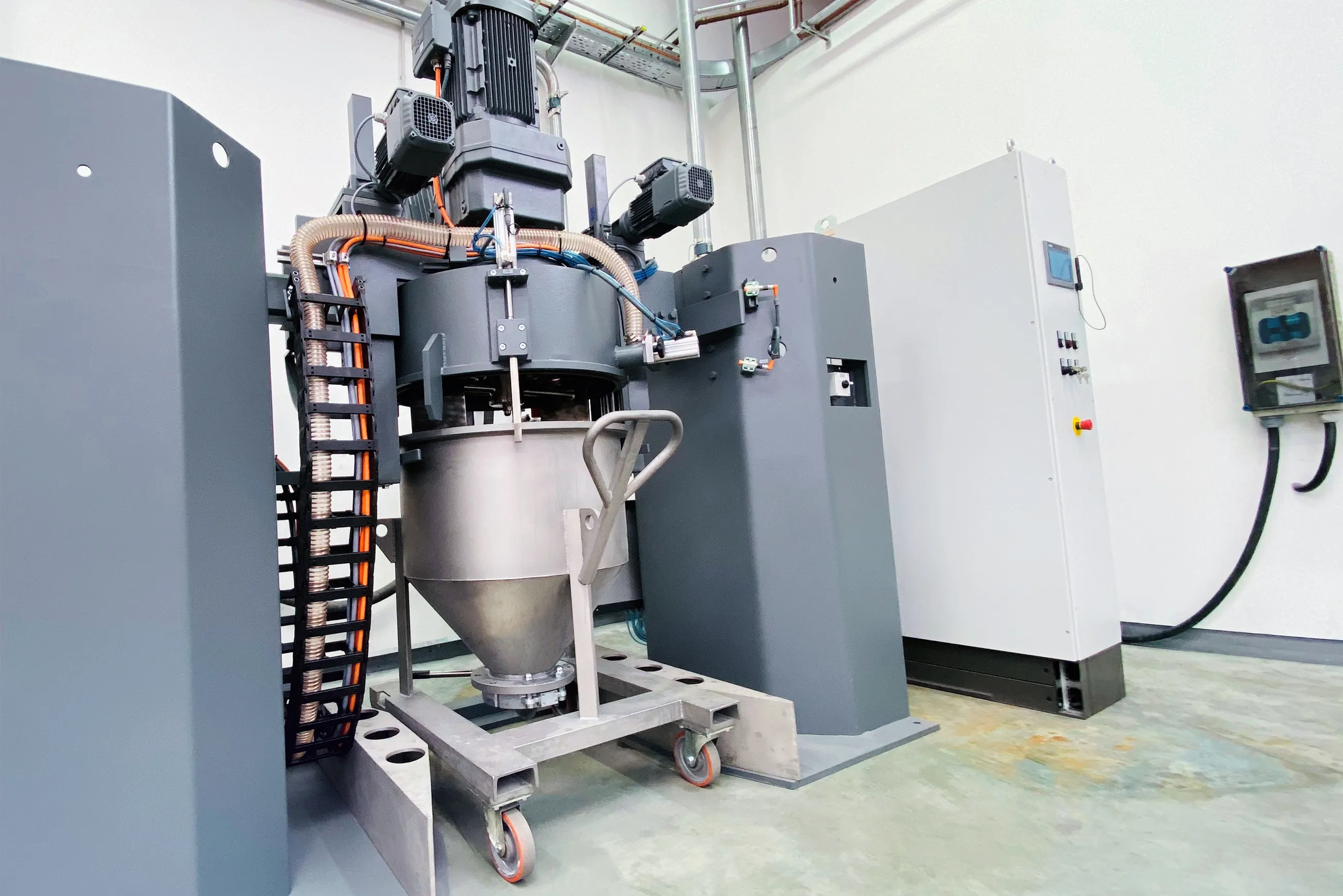

CM 300 MT2401203-6
CM 450 MT3601803-6
CM 600 MT4802403-6
CM 800 MT6403203-6
CM 1000 MT8004003-6
CM 1300 MT10405203-6

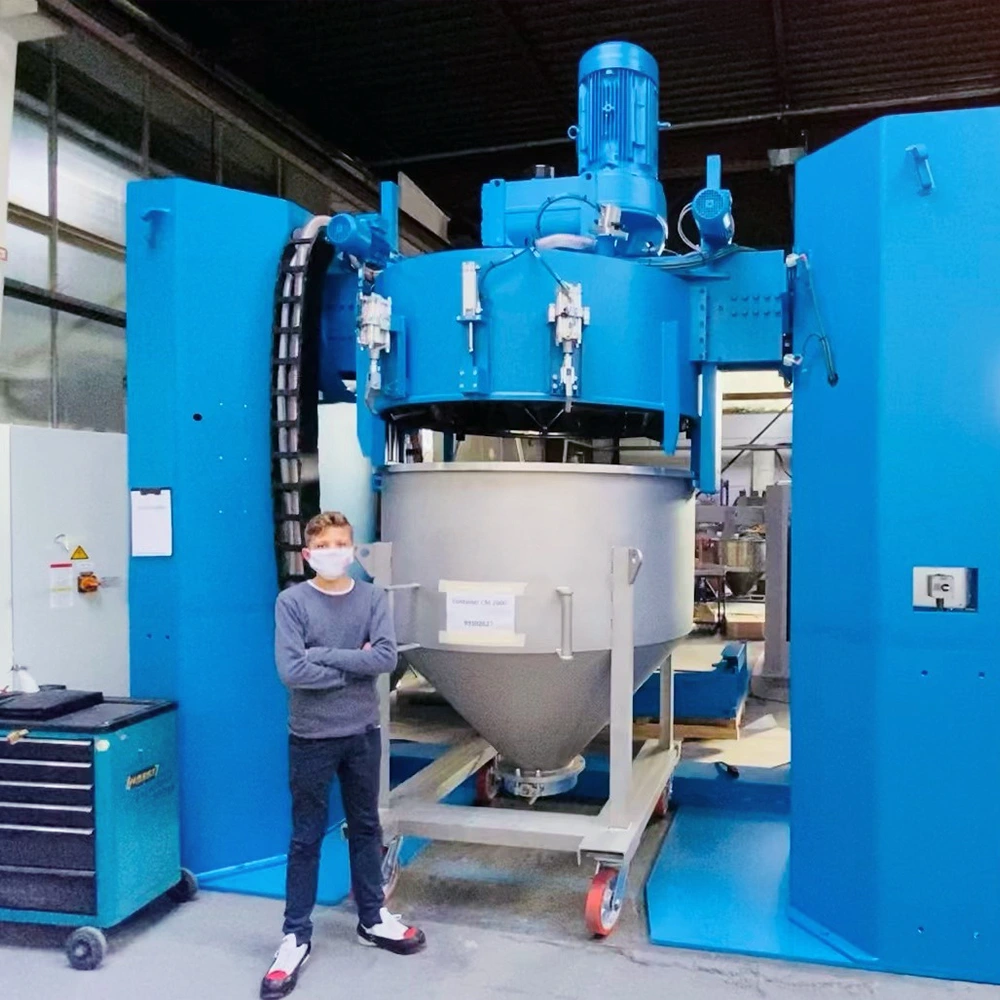

CM 2000 MT16008003-6
CM 3000 MT240012003-6

Parameters

Bulk Density: 0.5 kg/l

Filling Level: max. 80 %

Charging: manually

Please ask us for other sizes.
